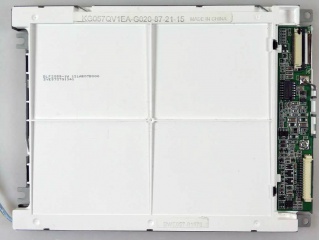

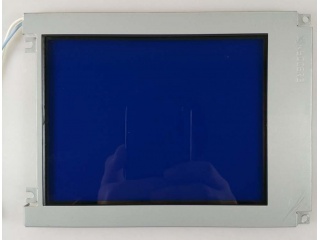

| PartNumber | KG057QV1EA-G020 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | STN-LCD , LCM |
| Brightness | |
| CR | 4:1 |
| Colors | Monochrome |
| Backlight | CCFL |
| Interface | |
| Diagonal Size | 5.7 inch |
| Pixel Format | 320×240 [QVGA] 70PPI |
| Active Area | 115.18(H)×86.38(V) mm |
| Luminance | - |
| View Direction | - |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) |
| Support Color | Monochrome |
| Weight | - |
| Frame Rate | - |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | KG057QV1EA-G020 |
| Type | STN-LCD , LCM |
| Configuration | Rectangle |
| Outline Dim. | - |
| Contrast Ratio | 4:1 (Typ.) (TM) |
| Response Time | 380/120 (Typ.)(Tr/Td) |
| Operating Mode | STN, Blue mode (Negative), Transmissive |
| Light Source | CCFL |
| Designed For | Industrial |
| Touch Panel | Without |
| KG057QV1CA-G00 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G020W | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G03 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| KG057QV1CF-G050 | Kyocera | 5.7 | 320×240 |
| KG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
