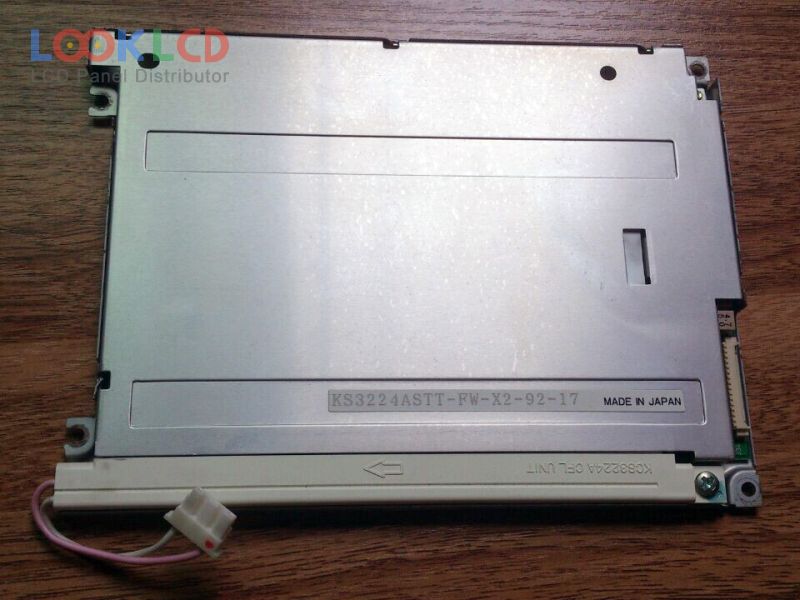

| PartNumber | KS3224ASTT-FW-X2 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | IA |
| Resolution | 320×240 , QVGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 8:1 |
| Colors | Monochrome |
| Backlight | CCFL |
| Interface | Parallel Data |
| Panel Brand | Kyocera |
| Panel Model | KS3224ASTT-FW-X2 |
| Panel Type | FSTN-LCD , LCM |
| Panel Size | 5.7 inch |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Active Area | 115.18×86.38 mm |
| Outline | 154.6×114.8×9 mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 8:1 (Typ.) |
| Display Colors | Monochrome |
| Response Time | 210/130 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/20 (Typ.)(CR≥2)(L/R/U/D) |
| Frequency | 75Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel Data (4-bit), 15 pins |
| Input Voltage | 5.0V (Typ.) |
