| PartNumber | LA121WH1-SL02 |
| Brand | LG Display |
| Size | 12.1 |
| Application | Automotive Display |
| Resolution | 1280×720 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 8S3P WLED , 10K hours , No Driver |
| Interface | LVDS |
| Manufacturer | LG Display |
| Model Name | LA121WH1-SL02 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×720 (WXGA) 121PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 266.88 × 150.12 (H×V) |
| Outline(mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| Bezel Area(mm) | 269.65 × 152.55 (H×V) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 17/13 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 62% NTSC |
| Mass | 417±5g |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

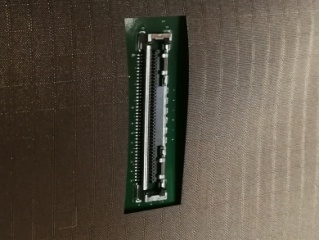

| Signal Type | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
