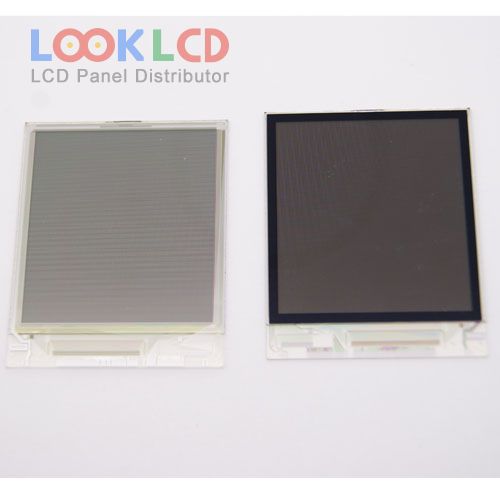

| PartNumber | LB020Q01-A1 |
| Brand | LG Display |
| Size | 2.0 |
| Application | MPH |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | CELL |
| Brightness | 0 |
| CR | |
| Colors | 262K |
| Backlight | No B/L |
| Interface | |
| Panel Brand | LG Display |
| Panel Model | LB020Q01-A1 |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 2.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 34.848×38.016 mm |
| Outline | 39.2×48.3×0.9 mm |
| Surface | Without Polarizer |
| Glass Depth | 0.45+0.45 mm |
| Transmissivity | 22% (Typ.)(without Polarizer) |
| Contrast Ratio | |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 40 (Typ.)(Tr+Td) |
| Viewing Angle | 15/35/45/45 (Min.)(CR≥10)(L/R/U/D) |
| Driver IC | Suggest HD66774R, HD66772, HX8609A, HX8301A |
