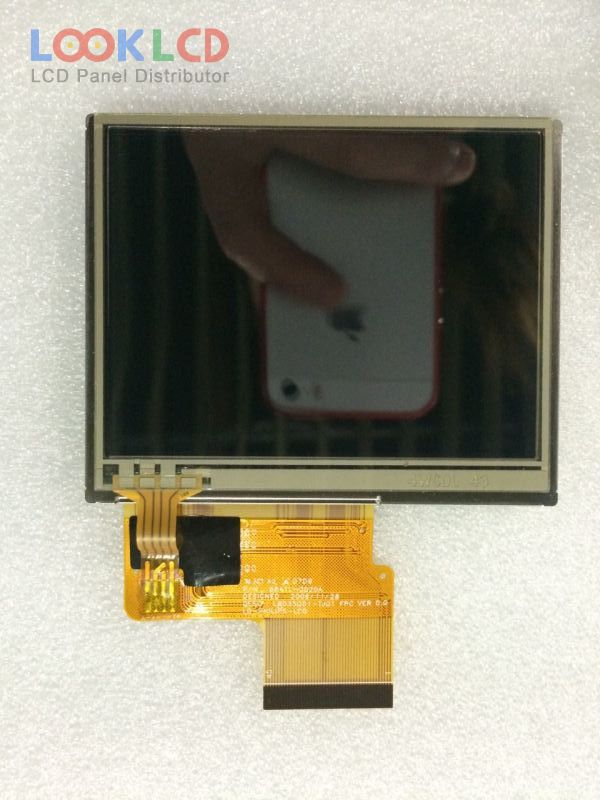

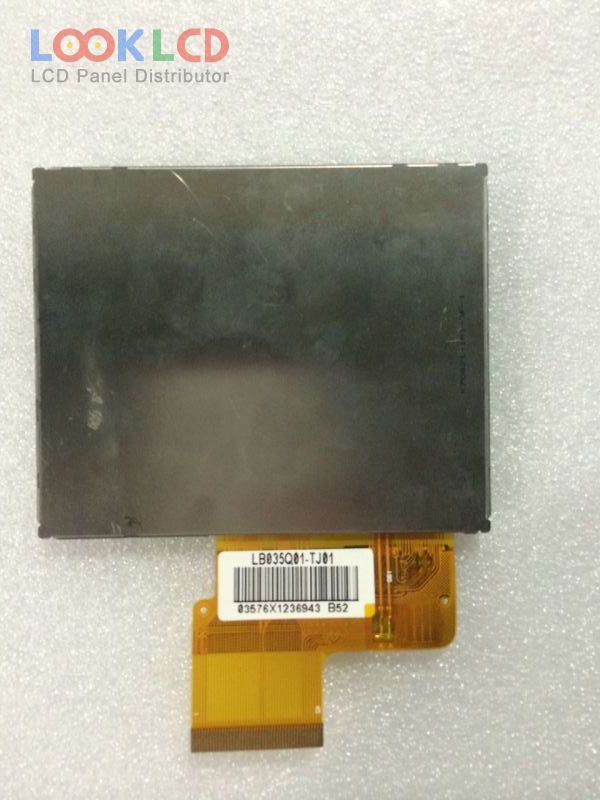

| PartNumber | LB035Q01-TJ01 |
| Brand | LG Display |
| Size | 3.5 |
| Application | PND |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | CELL |
| Brightness | 0 |
| CR | 300:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | TTL |
| Panel Brand | LG.Philips LCD |
| Panel Model | LB035Q01-TJ01 |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 3.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 70.08×52.56 mm |
| Outline | 78.1×62.95×1.53 mm |
| Surface | Hard coating |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 70Hz |
| Signal Interface | TTL (1 ch, 8-bit), 45 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VDD/AVDD) |
| RoHS: |
