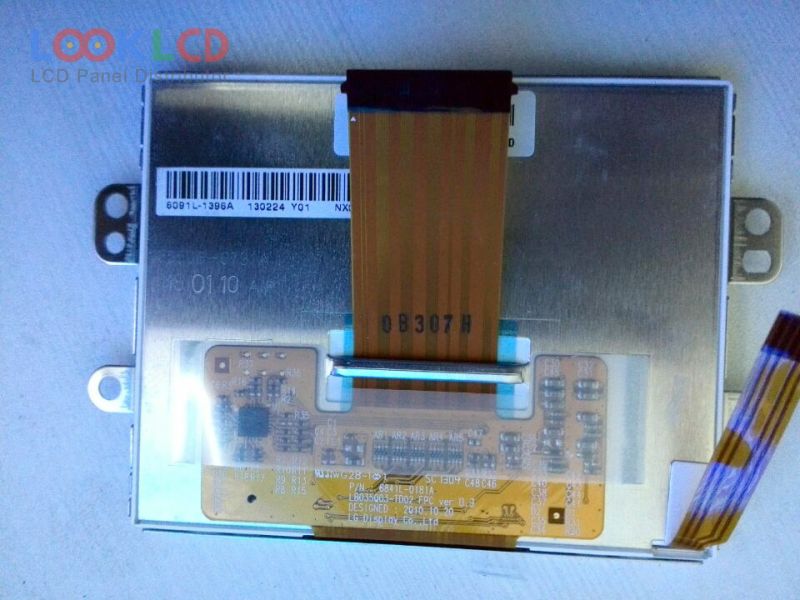

| PartNumber | LB035Q03-TD02 |
| Brand | LG Display |
| Size | 3.5 |
| Application | CNS |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | 625 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | LG Display |
| Panel Model | LB035Q03-TD02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 70.08×52.56 mm |
| Outline | 84×67×9.9 mm |
| Surface | Antiglare |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 7/18 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 5S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
