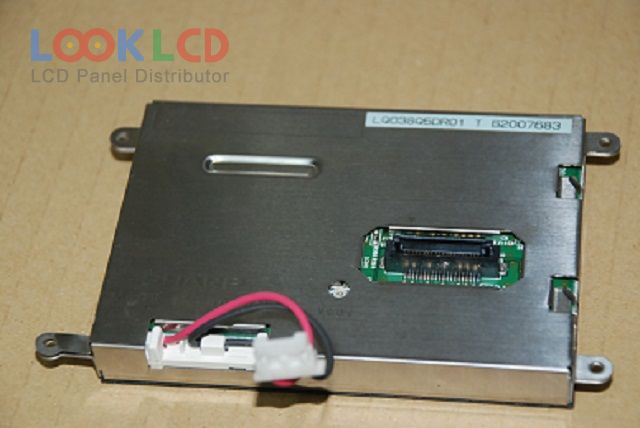

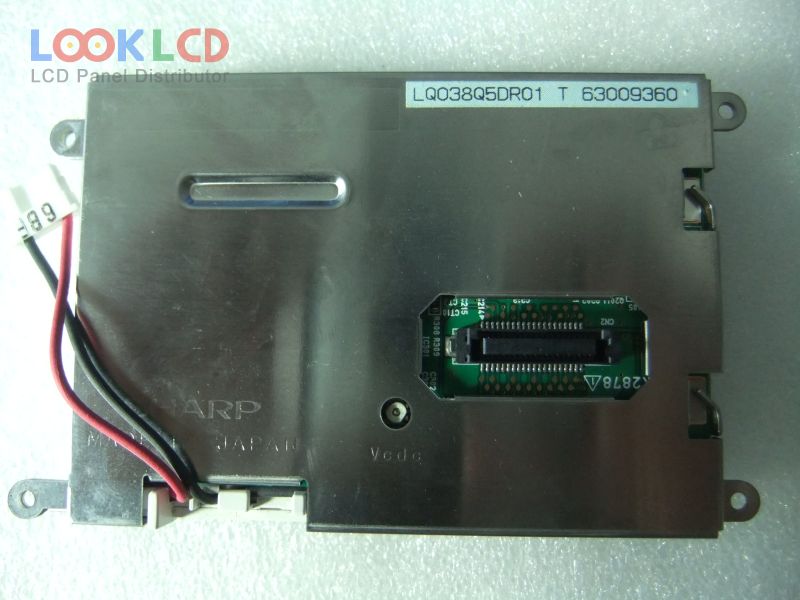

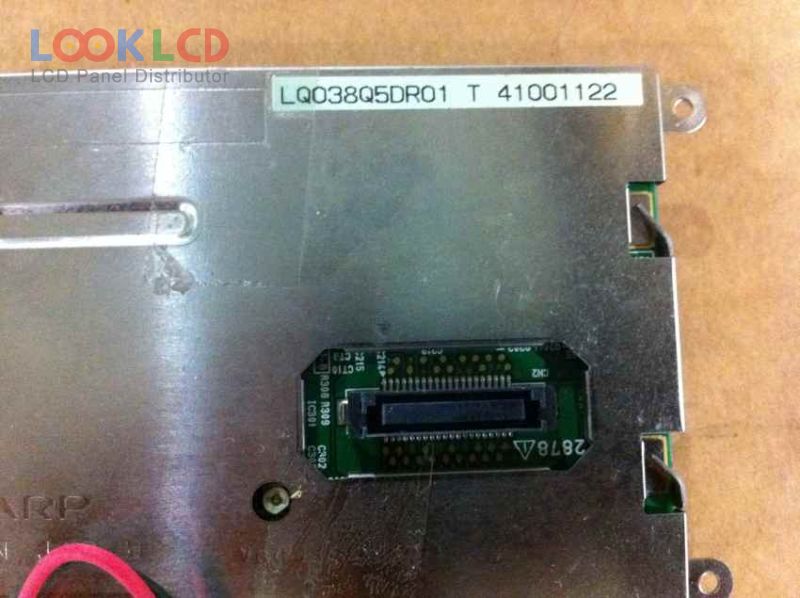

| PartNumber | LQ038Q5DR01 |
| Brand | SHARP |
| Size | 3.8 |
| Application | CNS |
| Resolution | 320(RGB)×240 , QVGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 100:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ038Q5DR01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.8 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 78.72×53.64 mm |
| Outline | 117.6×69.45 mm |
| Surface | Antiglare, Antireflection |
| Contrast Ratio | 100:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.)(VCC) |
