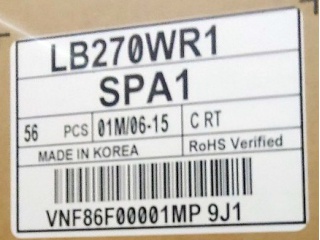

| PartNumber | LB270WR1-SPA1 |
| Brand | LG Display |
| Size | 27.0 |
| Application | Medical Imaging |
| Resolution | 3840×2160 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 1.07B |
| Backlight | 18S4P×2CN WLED , 30K hours , No Driver |
| Interface | eDP |
| Manufacturer | LG Display |
| Model Name | LB270WR1-SPA1 |
| Screen Size | 27.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 163PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 596.16 × 335.34 (H×V) |
| Outline(mm) | 649.84 × 387.13 × 17.3 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Anti Fingerprint, Hard coating, Antireflection |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 1.07B 100% sRGB |
| Mass | 3.85/4.05Kgs (Typ./Max.) |
| Used for | Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector |
| Voltage Supply | 10.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
