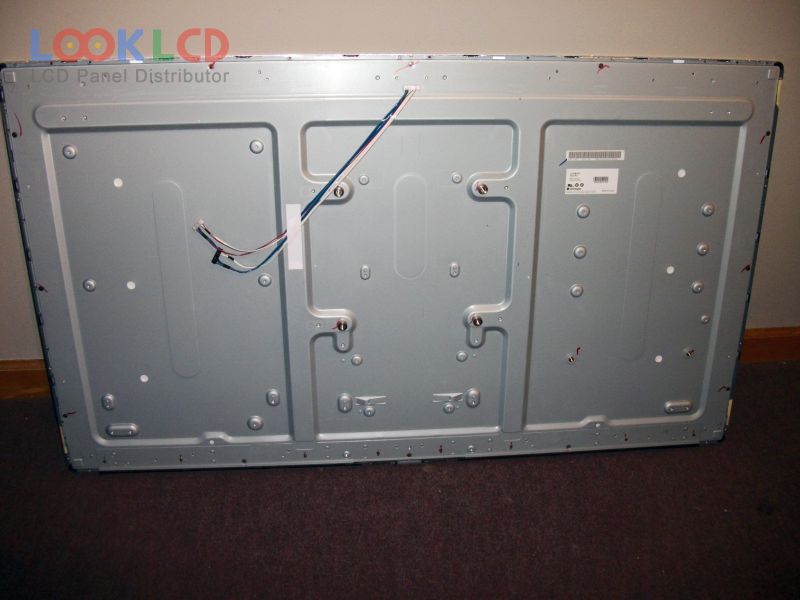

| PartNumber | LC470EUH-SCA1 |
| Brand | LG Display |
| Size | 47 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 1400:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | Mini LVDS |
| Panel Brand | LG Display |
| Panel Model | LC470EUH-SCA1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 47 inch |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Active Area | 1039.68×584.82 mm |
| Outline | 1083.6×628.8×26.3 mm |
| Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Contrast Ratio | 1400:1 (Typ.) |
| Display Colors | 1.07B (8-bit + Dithering), CIE193172% |
| Response Time | 8/10 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 120Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | Mini LVDS, 120 pins |
| Input Voltage | 12.0V (Typ.) |
