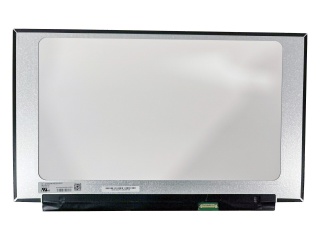

| PartNumber | LM156LFAL02 |
| Brand | PANDA |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Manufacturer | PANDA |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Luminance | 250 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K |
| Outline Shape | - |
| Refresh Rate | 60Hz |
| Signal Type | eDP (2 Lanes) , eDP1.2 Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | LM156LFAL02 |
| Screen Type | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | - |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Work Mode | FFS, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
