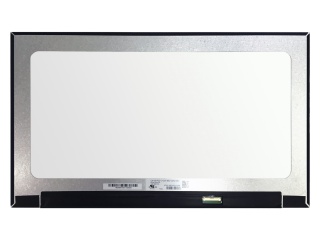

| PartNumber | LM156LFDL01 |
| Brand | PANDA |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1000:1 |
| Colors | 262K |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Interface | |
| Manufacturer | PANDA |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K 46% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Refresh Rate | 60Hz |
| Model Name | LM156LFDL01 (NCP002E) 0 Compatible |
| Screen Type | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 350.66 × 206.19 × 5.4 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | FFS, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Used for | Laptop |
| Touchscreen | Without |
