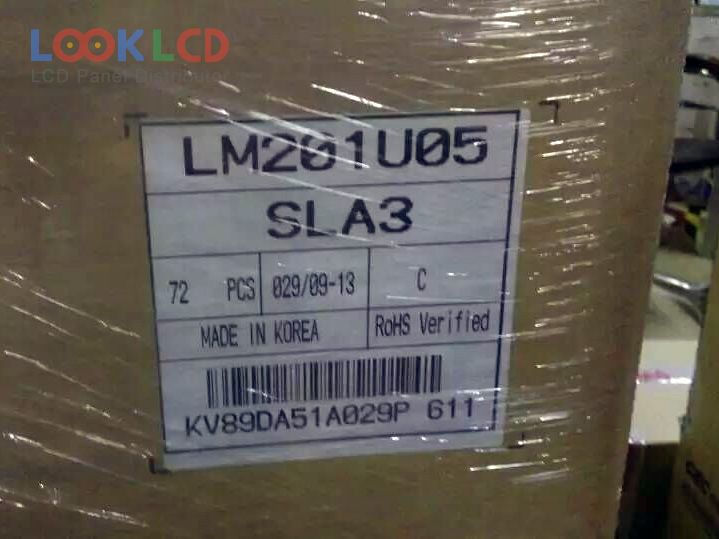

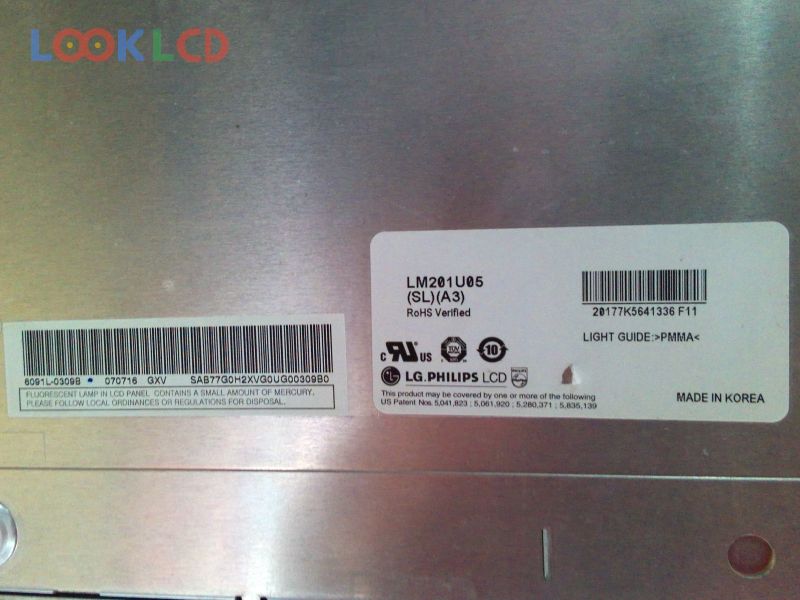

| PartNumber | LM201U05-SLA3 |
| Brand | LG Display |
| Size | 20.1 |
| Application | DMPC |
| Resolution | 1600(RGB)×1200 , UXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | LG.Philips LCD |
| Panel Model | LM201U05-SLA3 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 20.1 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 408×306 mm |
| Outline | 432×331.5×25.5 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 7/9 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 18.0V (Typ.) |
