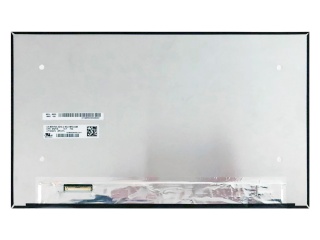

| PartNumber | LP133WF6-SPK1 |
| Brand | LG Display |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | LG Display |
| Model Name | LP133WF6-SPK1 |
| Screen Size | 13.3 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.472 × 165.078 (H×V) |
| Outline(mm) | 300.1 × 177.55 × 4.05 (H×V×D) |
| Bezel Area(mm) | 296.56 × 168.14 (H×V) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 75% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch |
| Signal Type | eDP (2 Lanes) , HBR1 (2.7G/lane) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
