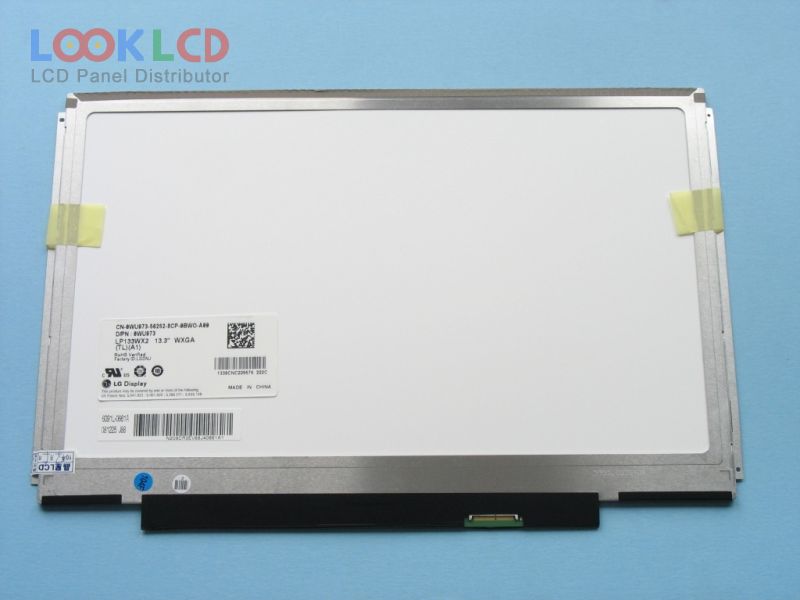

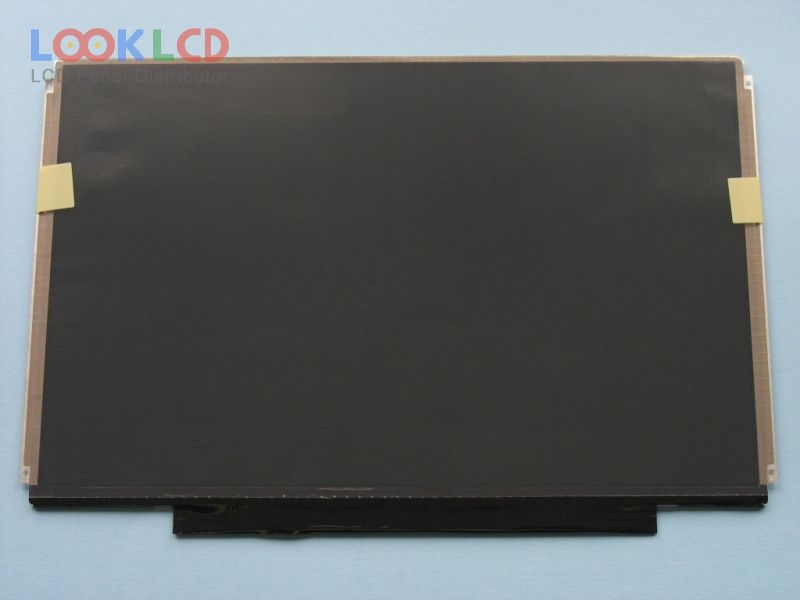

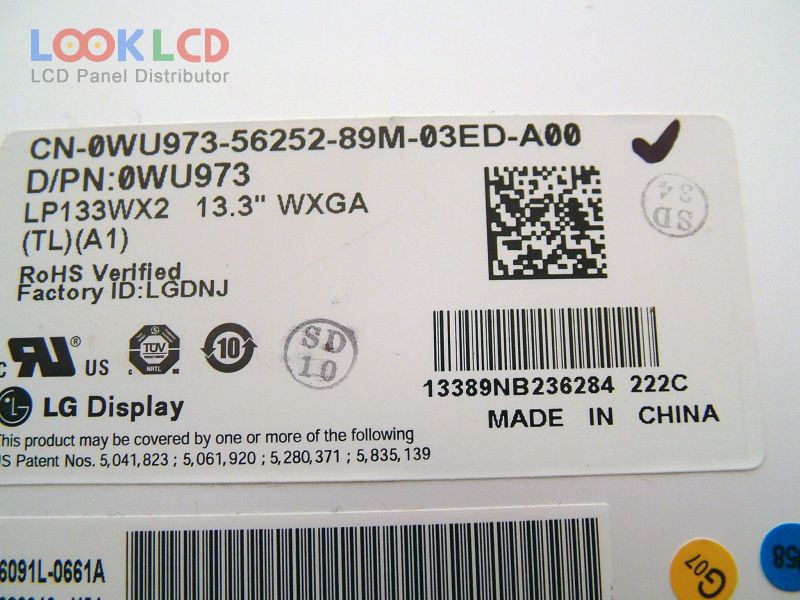

| PartNumber | LP133WX2-TLA1 |
| Brand | LG Display |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP133WX2-TLA1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 286.08×178.8 mm |
| Outline | 304×202.5×3.35 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 400:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
