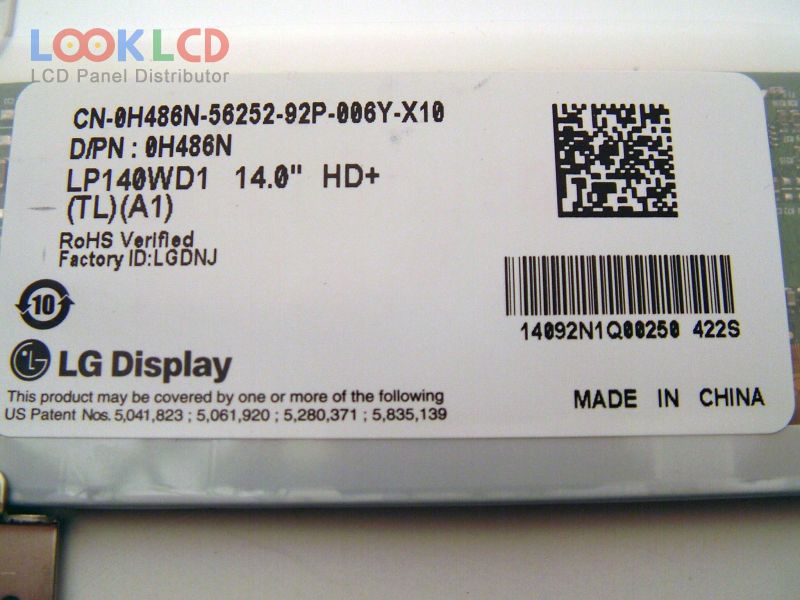

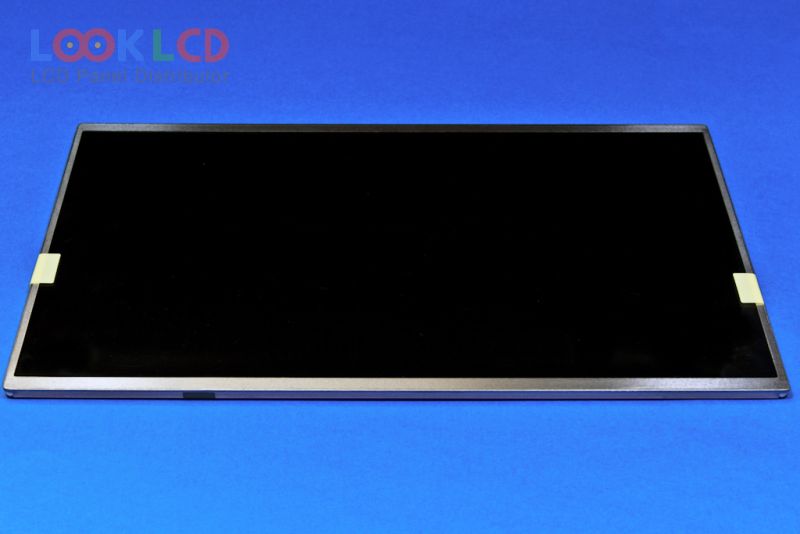

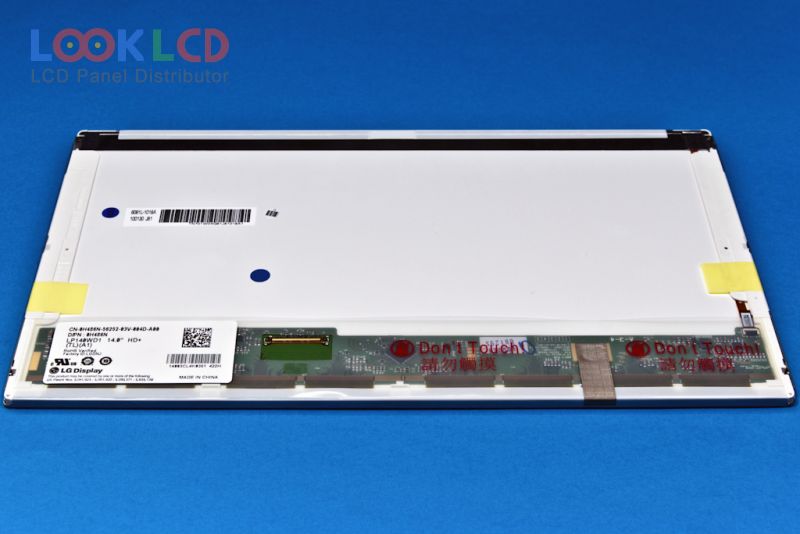

| PartNumber | LP140WD1-TLA1 |
| Brand | LG Display |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP140WD1-TLA1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.6×174.15 mm |
| Outline | 323.5×192×5.4 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP140WD1-TLA1 | LG Display | 14.0 | 1600×900 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLA3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLE3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B150XG01 V7 | AUO | 15.0 | 1024×768 |
| HT141WXB-100 | BOE | 14.1 | 1280×800 |
| LP133WH1-TLC1 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| LQ164M1LD4CV | SHARP | 16.4 | 1920×1080 |
| LTM10C353 | TOSHIBA | 10.0 | 1280×600 |
| LTN133YL01-F01 | Samsung | 13.3 | 3200×1800 |
| LTN160AT03-001 | Samsung | 16.0 | 1366×768 |
