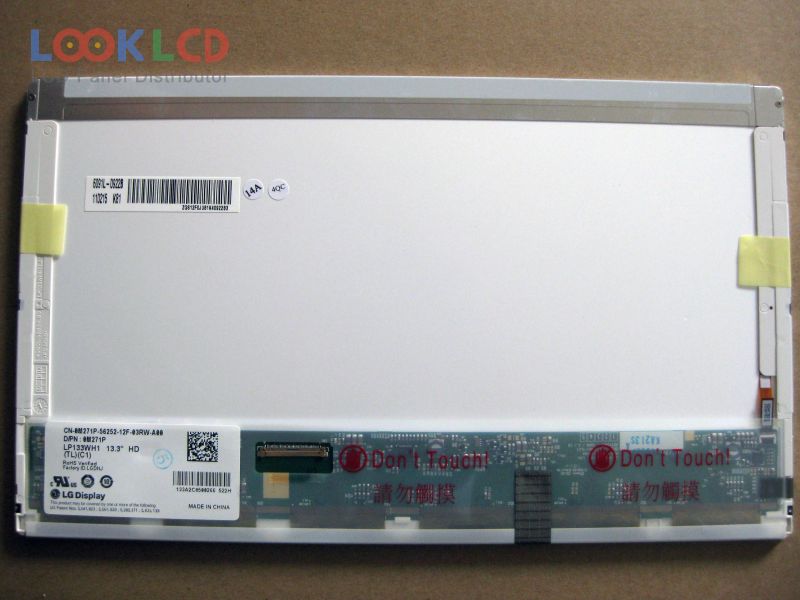

| PartNumber | LP133WH1-TLC1 |
| Brand | LG Display |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP133WH1-TLC1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 293.42×164.97 mm |
| Outline | 307.6×183.1×5.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
