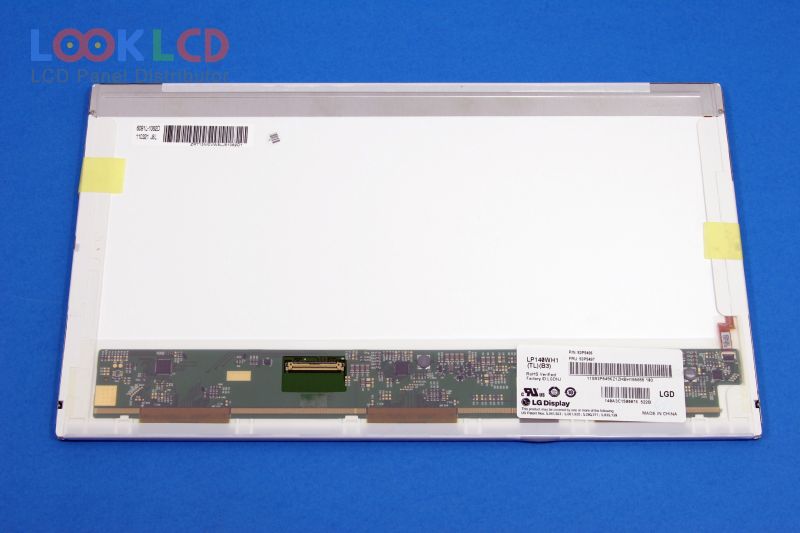

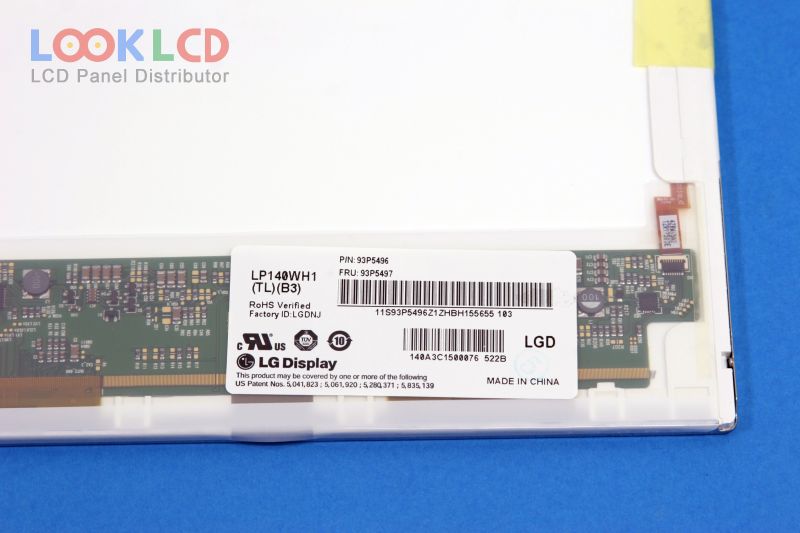

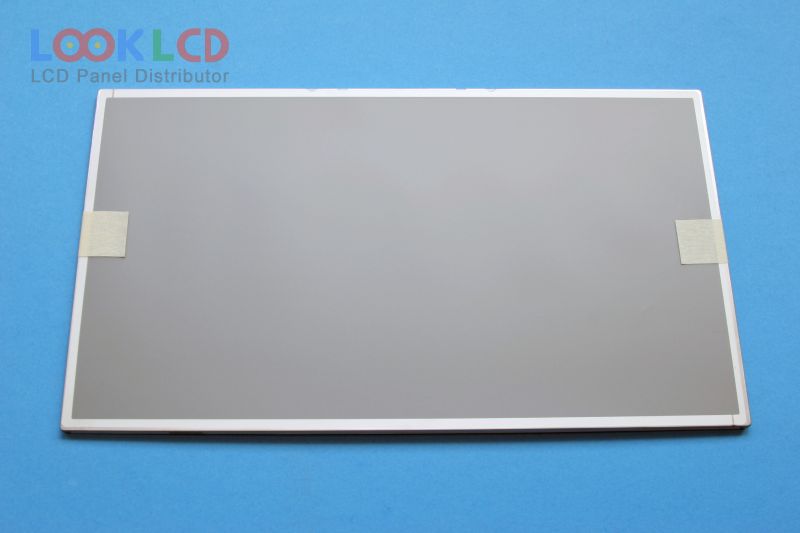

| PartNumber | LP140WH1-TLB3 |
| Brand | LG Display |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP140WH1-TLB3 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 309.399×173.952 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 6-bit) |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLT1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B156HTB01.0 | AUO | 15.6 | 1920×1080 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LP154WE3-TLA2 | LG Display | 15.4 | 1680×1050 |
| LP154WP3-TLA3 | LG Display | 15.4 | 1440×900 |
| LQ150F1LW14C | SHARP | 15.0 | 1400×1050 |
| LTD121EW6S | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTN150PG-L03 | Samsung | 15.0 | 1400×1050 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
