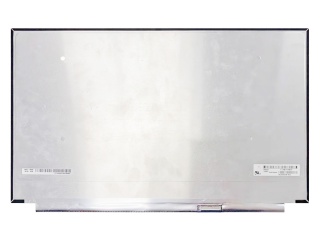

| PartNumber | LP156UD3-SPB2 |
| Brand | LG Display |
| Size | 15.6 |
| Application | Laptop Industrial |
| Resolution | 3840×2160 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1600:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | LG Display |
| Model Name | LP156UD3-SPB2 |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 283PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.218 × 193.622 (H×V) |
| Outline(mm) | - |
| Luminance | - |
| Contrast Ratio | 1600 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
