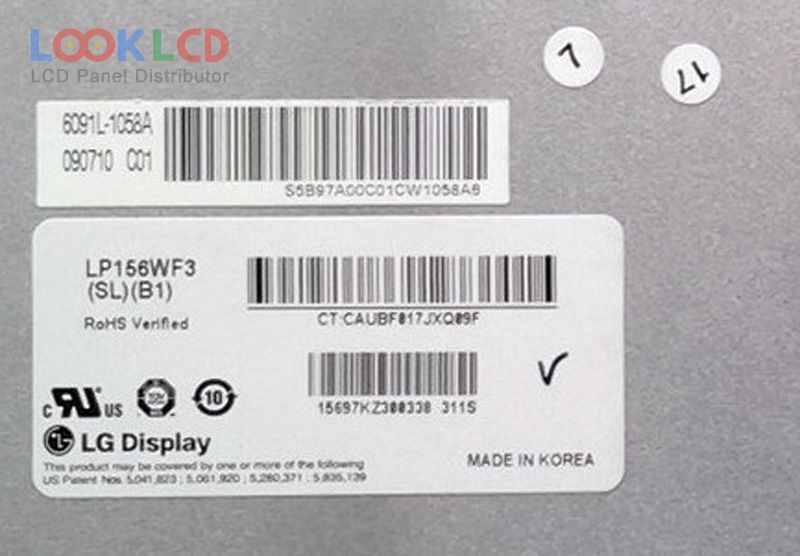

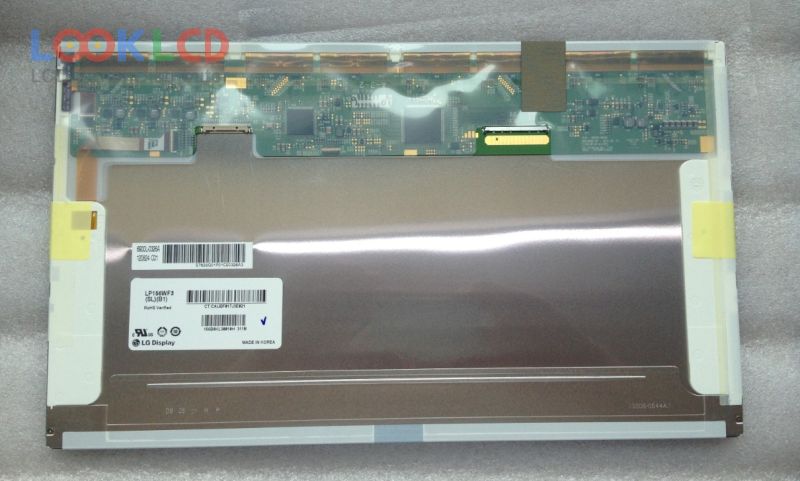

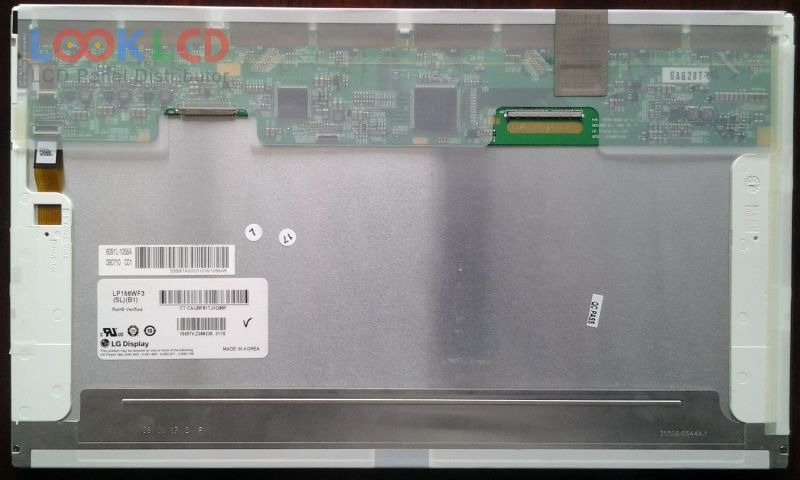

| PartNumber | LP156WF3-SLB1 |
| Brand | LG Display |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 210 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 1.07B |
| Backlight | RGB LED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP156WF3-SLB1 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.3×212.1×7.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 1.07B (10-bit), CIE1931110% |
| Response Time | 30 (Typ.)(Tr+Td); 15 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | RGB LEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 10-bit), 50 pins |
| Input Voltage | 3.3V (Typ.) |
