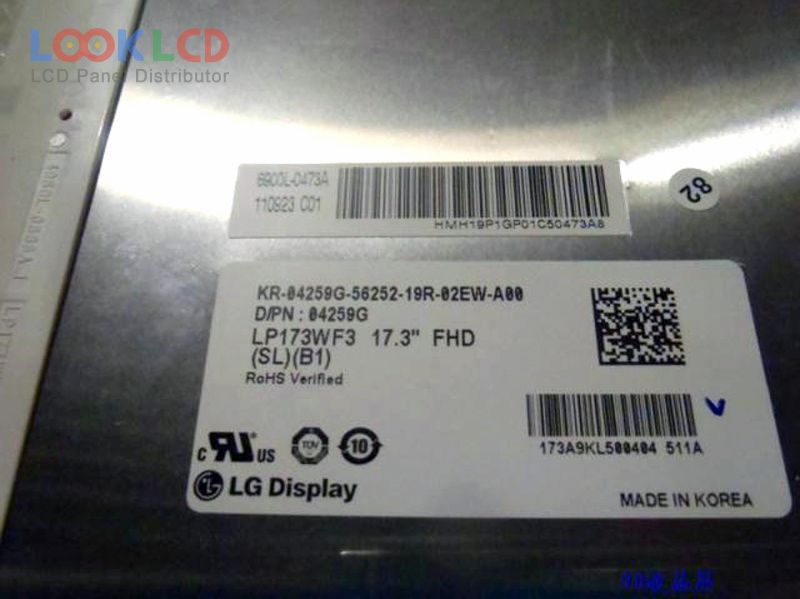

| PartNumber | LP173WF3-SLB1 |
| Brand | LG Display |
| Size | 17.3 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 1.07B |
| Backlight | RGB LED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP173WF3-SLB1 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.3 inch |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Active Area | 381.888×214.812 mm |
| Outline | 398.1×234.3×7.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 600:1 (Min.) |
| Display Colors | 1.07B (10-bit), CIE1931100% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | RGB LEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 10-bit), 50 pins |
| Input Voltage | 3.3V (Typ.) |
| LP173WD1-TLA2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLG2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN4 | LG Display | 17.3 | 1600×900 |
| LP173WF1-TLB2 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LP173WF3-SLB2 | LG Display | 17.3 | 1920×1080 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| B154EW08 V1 | AUO | 15.4 | 1280×800 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LQ164D1LA4B | SHARP | 16.4 | 1600×900 |
| LTD121EA3KZ | TOSHIBA | 12.1 | 1024×768 |
| LTM12C318S | TOSHIBA | 12.1 | 1024×768 |
| LTN140KT06-T01 | Samsung | 14.0 | 1600×900 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
