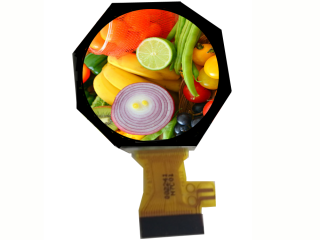

| PartNumber | LPM011M133B |
| Brand | JDI |
| Size | 1.1 |
| Application | Wearable Round Displ |
| Resolution | 218×218 |
| Composition | LTPS TFT-LCD, CELL |
| Brightness | |
| CR | 20:1 |
| Colors | 64 |
| Backlight | No |
| Interface | |
| Model | LPM011M133B |
| Diagonal Size | 1.1 inch |
| Type | LTPS TFT-LCD, CELL |
| Pixel Format | 218(RGB)×218 200PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 27.6642(H)×27.6642(V) mm |
| Outline Dim. | 30.465(H)×31.865(V) ×0.884(D) mm |
| Bezel Area | - |
| Treatment | Hard coating (2H) |
| Luminance | - |
| Contrast Ratio | 20:1 (Typ.) (RF) |
| View Direction | - |
| Response Time | 3/6 (Typ.)(Tr/Td) |
| Viewing Angle | 60/65/65/60 (Typ.)(CR≥2) |
| Operating Mode | ECB, Normally Black, Reflective |
| Plate Thickness | - |
| Transmittance | 0.3% (Typ.) |
| Support Color | 64 23% NTSC |
| Light Source | No B/L |
| Weight | 1.50g (Typ.) |
| Designed For | Wearable Round Display |
| Frame Rate | 30Hz |
| Touch Panel | Without |
| Power Supply | 3.2/4.5V (Typ.)(VDD1/VDD2) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
