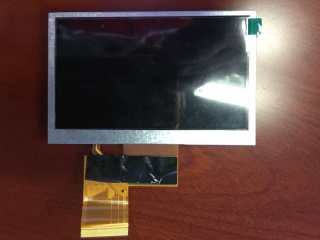

| PartNumber | LQ043T1DG59 |
| Brand | Sharp |
| Size | 4.3 |
| Application | Industrial Handheld & PDA |
| Resolution | 480(RGB)×272, WQVGA, 128PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | 9S1P |
| Interface | |
| Panel Brand | Sharp |
| Panel Size | 4.3" |
| Display Area | 95.04(W)×53.856(H) mm |
| Outline Size | 105.5(W)×67.2(H) ×3.1(D) mm |
| Viewing Angle | 65/65/50/55 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 16.7M 42% NTSC |
| Frequency | 60Hz |
| Weight | TBD |
| Panel Model | LQ043T1DG59 1 Compatible |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 100.8(W)×57.5(H) mm |
| Surface | Antiglare, Hard coating (2H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr+Td) |
| Lamp Type | 9S1P WLED , 15K hours , Without Driver |
| Touch Screen | Without |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
