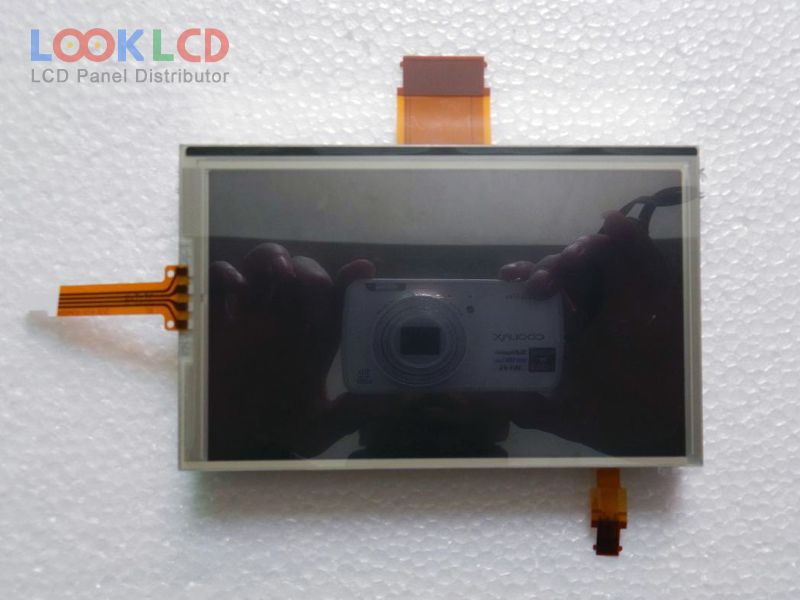

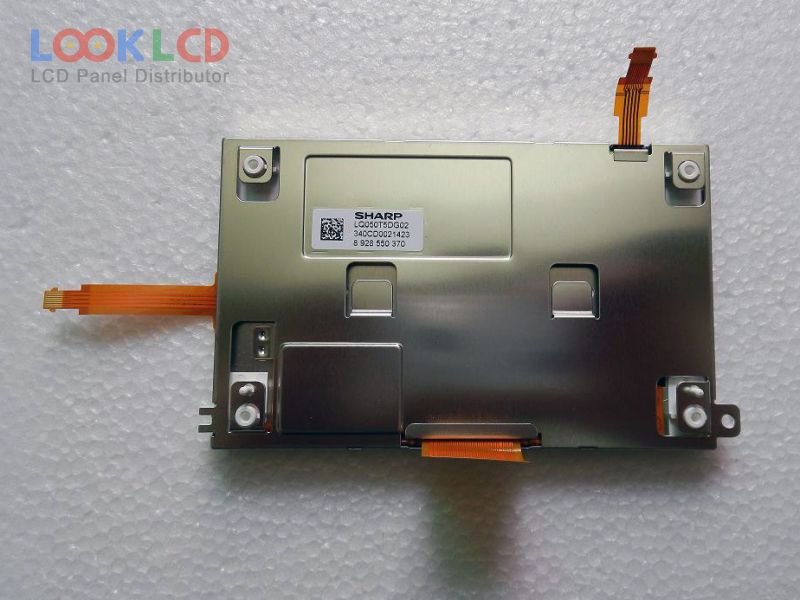

| PartNumber | LQ050T5DG02 |
| Brand | SHARP |
| Size | 5.0 |
| Application | CNS |
| Resolution | 400(RGB)×240 , WQVGA |
| Composition | LCM |
| Brightness | 600 cd/m² (Typ.) |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ050T5DG02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 108×64.8 mm |
| Outline | 120.6×75.2 mm |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Lamp Type | WLED |
| Signal Interface | CMOS (1 ch, 6-bit) |
| RoHS: |
