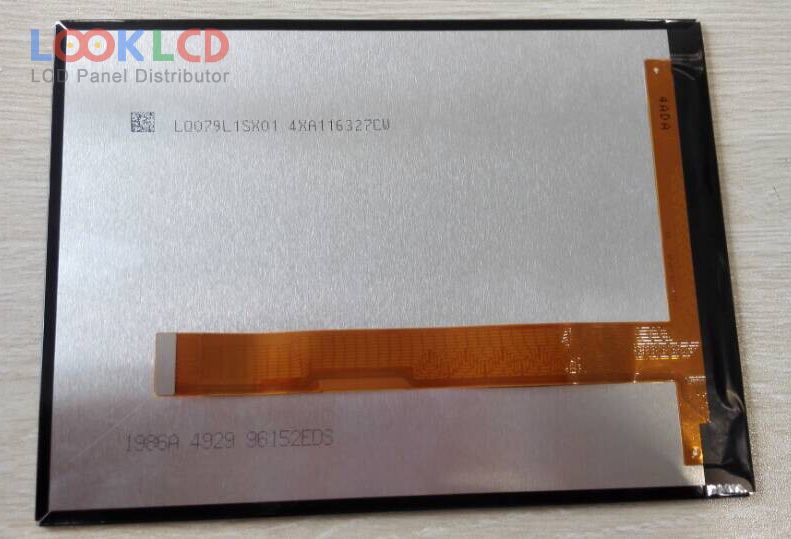

| PartNumber | LQ079L1SX01 |
| Brand | SHARP |
| Size | 7.9 |
| Application | PAD |
| Resolution | 1536(RGB)×2048 , QXGA |
| Composition | LCM |
| Brightness | 460 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | SHARP |
| Panel Model | LQ079L1SX01 |
| Panel Type | IGZO TFT-LCD , LCM |
| Panel Size | 7.9 inch |
| Display Mode | Normally Black, Transmissive |
| Active Area | 119.808×159.744 mm |
| Outline | 125.55×171.3×3.15 mm |
| Surface | |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S4PWLEDWithout Driver |
| Signal Interface | MIPI (2 ch, 4 data lanes), 50 pins |
| Input Voltage | 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) |
