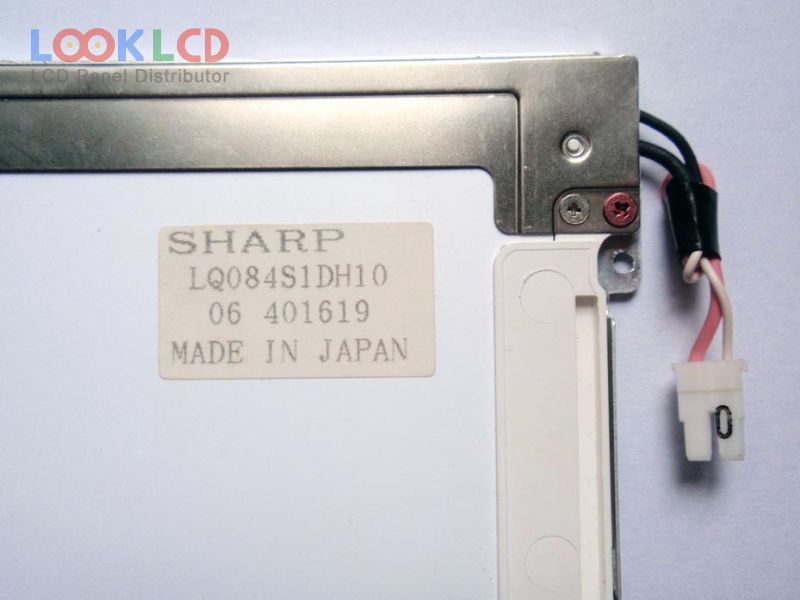

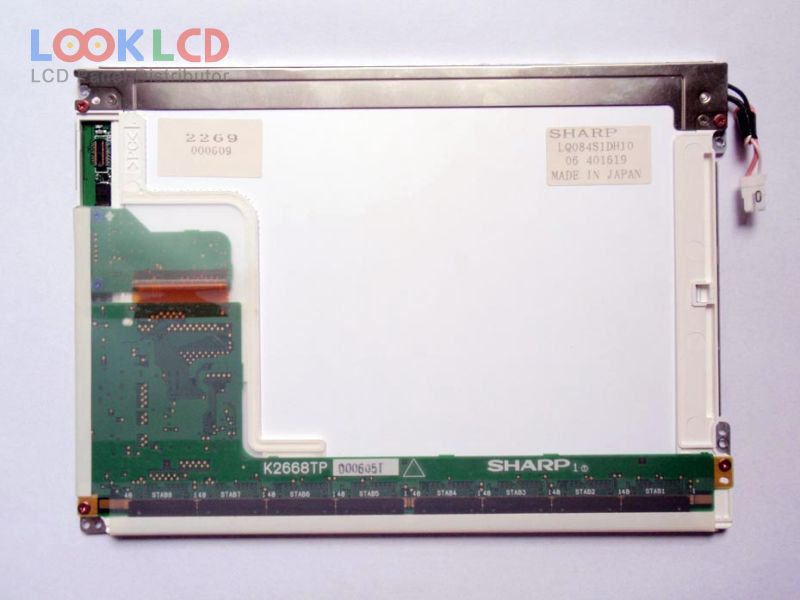

| PartNumber | LQ084S1DH10 |
| Brand | SHARP |
| Size | 8.4 |
| Application | NBPC |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | CCFL |
| Interface | |
| Panel Brand | SHARP |
| Panel Model | LQ084S1DH10 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.4×127.8 mm |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Lamp Type | 1 pcsCCFL |
