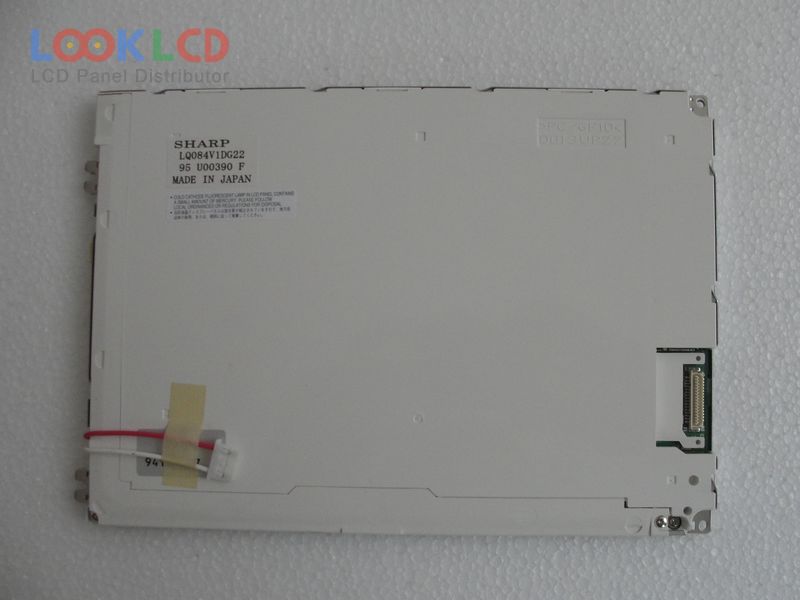

| PartNumber | LQ084V1DG22 |
| Brand | SHARP |
| Size | 8.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 250:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ084V1DG22 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.88×129.6 mm |
| Outline | 216×152.4 mm |
| Surface | Antiglare (Haze 28%), Hard coating (3H) |
| Contrast Ratio | 250:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 1 pcsCCFL |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
