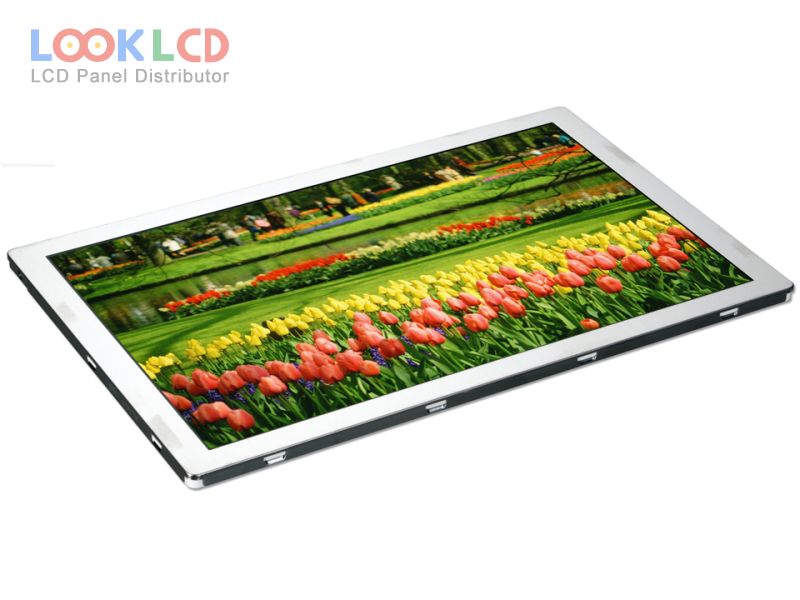

| PartNumber | LQ085Y3DW01 |
| Brand | SHARP |
| Size | 8.5 |
| Application | IA |
| Resolution | 800×480(RGB) , WVGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ085Y3DW01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.5 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 184.8×110.88 mm |
| Outline | 210×134 mm |
| Surface | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S4PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| Input Voltage | 3.3V (Typ.) |
