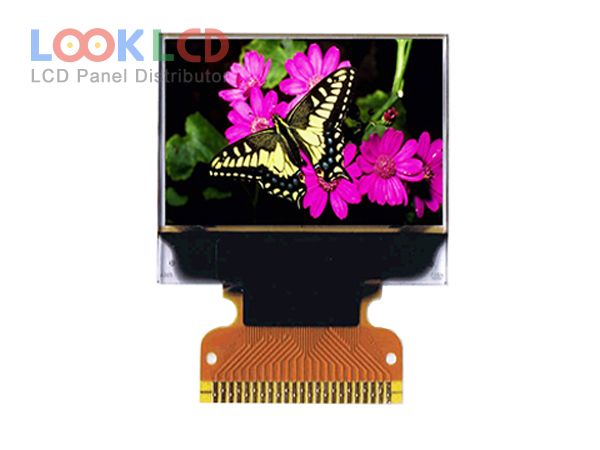

| PartNumber | UG-9664HDDAG01 |
| Brand | WiseChip |
| Size | 0.95 |
| Application | IA |
| Resolution | 96(RGB)×64 |
| Composition | OLED |
| Brightness | 100 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 65K |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | WiseChip |
| Panel Model | UG-9664HDDAG01 |
| Panel Type | PM-OLED , OLED |
| Panel Size | 0.95 inch |
| Active Area | 20.14×13.42 mm |
| Outline | 25.7×22.2×1.6 mm |
| Surface | |
| Contrast Ratio | 1000 : 1 (Typ.) |
| Display Colors | 65K |
| Viewing Angle | 80/80/80/80 (Min.)(L/R/U/D) |
| Driver IC | COG Built-in SSD1331Z |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| Input Voltage | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| RoHS: |
