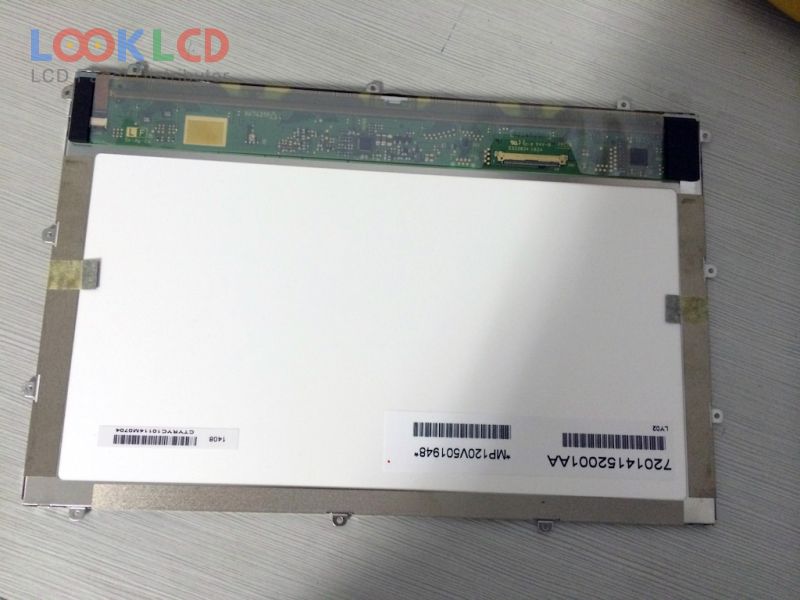

| PartNumber | LQ101K1LY02 |
| Brand | SHARP |
| Size | 10.1 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ101K1LY02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 238.12×156.48×6 mm |
| Surface | Glare (Haze 0%), Antireflection |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| B080EAN02.2 | AUO | 8.0 | 800×1280 |
| B080XAN01.0 | AUO | 7.9 | 768×1024 |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
