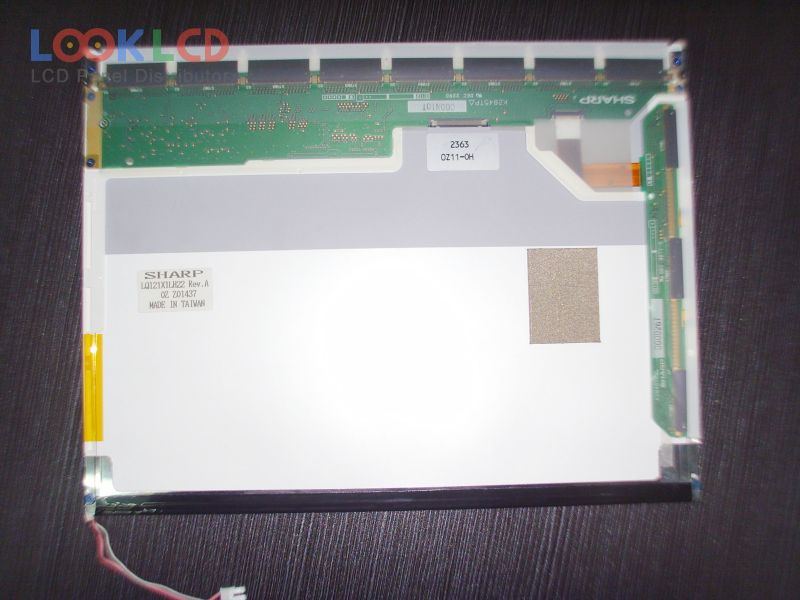

| PartNumber | LQ121X1LH22 |
| Brand | SHARP |
| Size | 12.1 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 160 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ121X1LH22 6 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 245.76×184.32 mm |
| Outline | 261×199×5.5 mm |
| Surface | Antiglare, Hard coating (2H), Reflection 5.0% (Max.) |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
