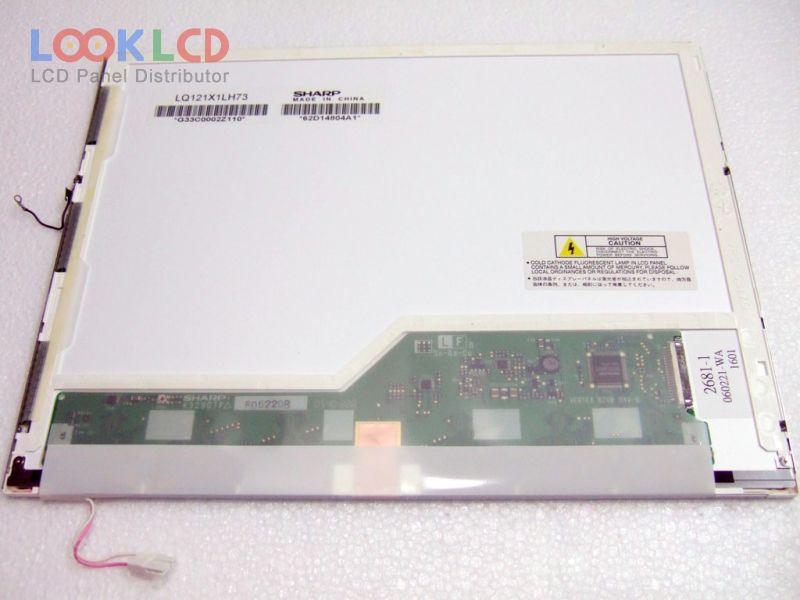

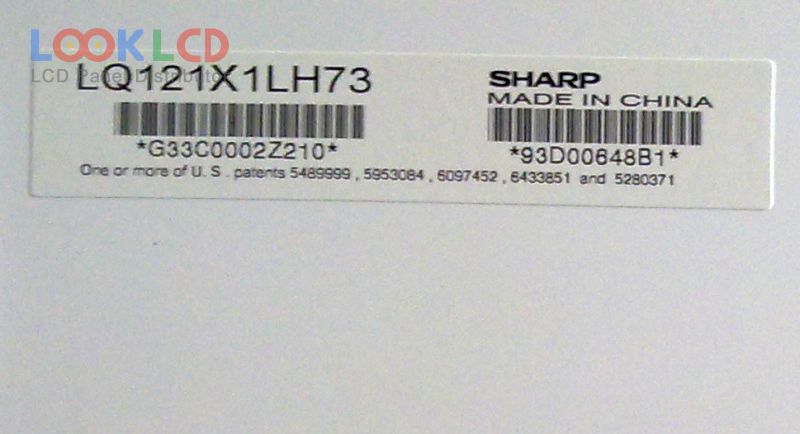

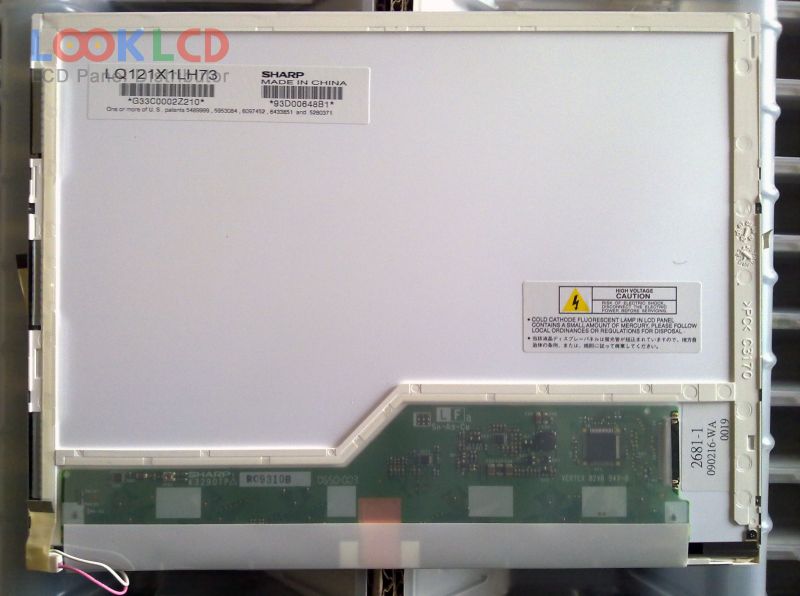

| PartNumber | LQ121X1LH73 |
| Brand | SHARP |
| Size | 12.1 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ121X1LH73 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 245.76×184.32 mm |
| Outline | 260×197.5 mm |
| Surface | Antiglare, Hard coating (2H), Antireflection |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| LQ121K1LG52 | SHARP | 12.1 | 1280×800 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ121S1DG41 | SHARP | 12.1 | 800×600 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LQ121S1LG73 | SHARP | 12.1 | 800×600 |
| LQ121S1LG84 | SHARP | 12.1 | 800×600 |
| LQ121X1LH22 | SHARP | 12.1 | 1024×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| B173RW01 V3 | AUO | 17.3 | 1600×900 |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| HB140FH1-301 | BOE | 14.0 | 1920×1080 |
| HT14X12-101 | HYDIS | 14.1 | 1024×768 |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N150X7-L01 | Innolux | 15.0 | 1024×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156BGE-LB1 | Innolux | 15.6 | 1366×768 |
