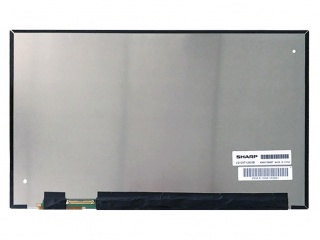

| PartNumber | LQ125T1JX03C |
| Brand | Sharp |
| Size | 12.5 |
| Application | Laptop Pad & Tablet |
| Resolution | 2560(RGB)×1440, Quad-HD, 235PPI |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Sharp |
| Panel Model | LQ125T1JX03C (SHP142C) |
| Panel Size | 12.5" |
| Panel Type | Oxide TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 276.48(W)×155.52(H) mm |
| Bezel Opening | - |
| Outline Size | 282.68(W)×169.93(H) ×4.9(D) mm |
| Surface | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| HB125WX1-200 | BOE | 12.5 | 1366×768 |
| LP125WF2-SPB2 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-TLE1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLFA | LG Display | 12.5 | 1366×768 |
| LQ125T1JW02 | SHARP | 12.5 | 2560×1440 |
| M125NWR2 R1 | IVO | 12.5 | 1366×768 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
