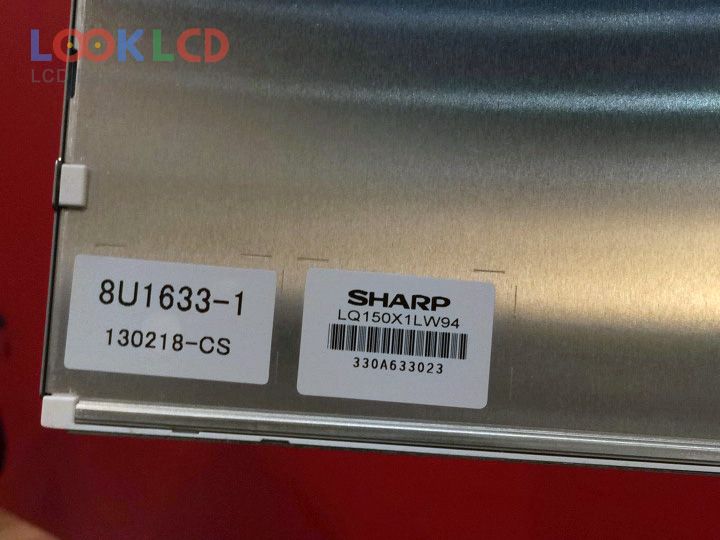

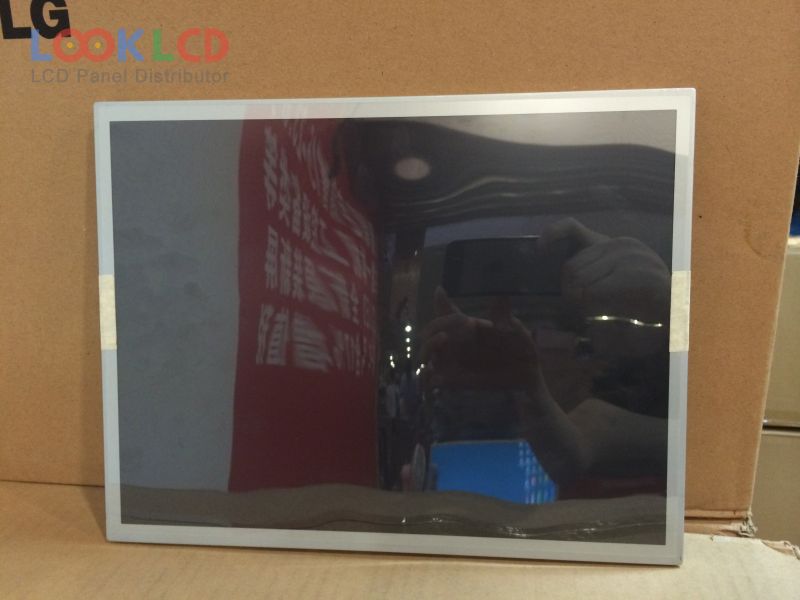

| PartNumber | LQ150X1LW94 |
| Brand | SHARP |
| Size | 15.0 |
| Application | GM |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1500:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ150X1LW94 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 326.5×253.5×10.1 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1500:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC), CIE193170% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
