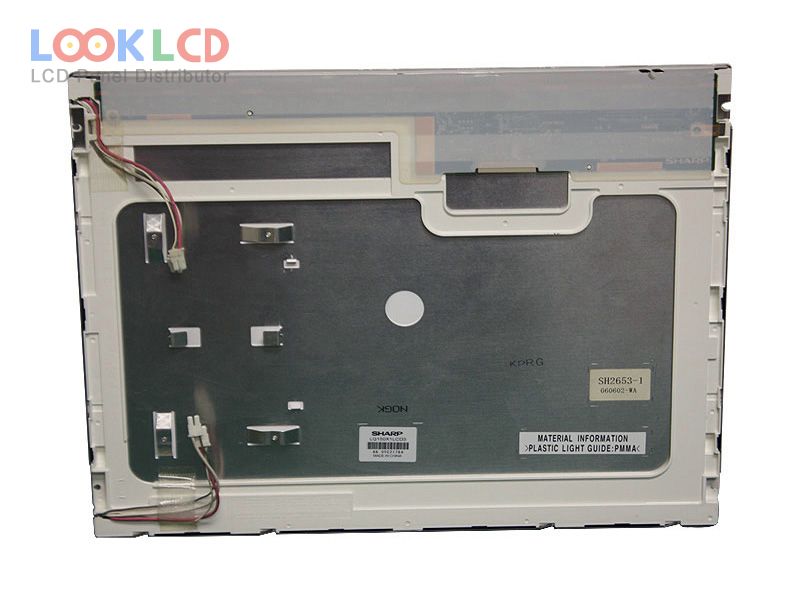

| PartNumber | LQ150X1LCD3 |
| Brand | SHARP |
| Size | 15.0 |
| Application | DMPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.2M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ150X1LCD3 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.1×228.1 mm |
| Outline | 331.6×254.8×32.35 mm |
| Surface | Hard coating (2H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 4 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
