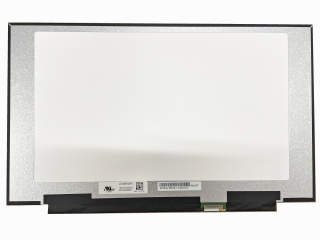

| PartNumber | LQ156M1JW16 |
| Brand | Sharp |
| Size | 15.6 |
| Application | Laptop Gaming |
| Resolution | 1920×1080 |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | LQ156M1JW16 (SHP14F4) |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 350.66(H)×215.54(V) ×2.6(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 7.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | New Mode2, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop Gaming |
| Frame Rate | 240Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
