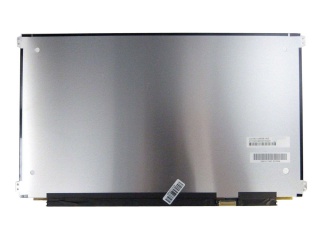

| PartNumber | LQ156Z1JW03B |
| Brand | Sharp |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3200×1800 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED , With LED Driver |
| Interface | eDP |
| Manufacturer | Sharp |
| Screen Size | 15.6 inch |
| Pixel Number | 3200(RGB)×1800 (Quad-HD+) 235PPI |
| Active Area(mm) | 345.6 × 194.4 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 300 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Refresh Rate | 60Hz |
| Signal Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | LQ156Z1JW03B (SHP141C) |
| Screen Type | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 367.98 × 218.21 × 2.85 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | New Mode, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB3 | LG Display | 15.6 | 1920×1080 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| LTN156AT05-S01 | Samsung | 15.6 | 1366×768 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156O6-L04 | Innolux | 15.6 | 1600×900 |
