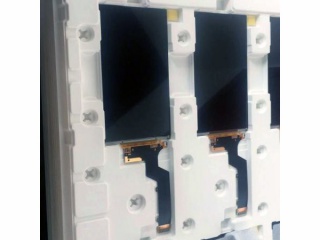

| PartNumber | LS052R1SX04 |
| Brand | Sharp |
| Size | 5.2 |
| Application | Mobile Phone |
| Resolution | 1440×2560 |
| Composition | LCM , CG-Silicon |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 8S2P WLED , No Driver |
| Interface | |
| Manufacturer | Sharp |
| Screen Size | 5.2 inch |
| Pixel Number | 1440(RGB)×2560 (Quad-HD) 570PPI |
| Active Area(mm) | 64.152 × 114.048 (H×V) |
| Luminance | 450 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Max.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 94% NTSC |
| Mass | 15.8g (Typ.) |
| Refresh Rate | 60Hz |
| Model Name | LS052R1SX04 |
| Screen Type | LCM , CG-Silicon |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 66.36 × 120.64 × 1.4 (H×V×D) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Response | 32 (Typ.)(Tr+Td) ms |
| Used for | Mobile Phone |
| Touchscreen | Without |
