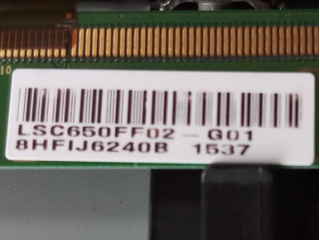

| PartNumber | LSC650FF02-G |
| Brand | SAMSUNG |
| Size | 65 |
| Application | TV Sets |
| Resolution | 3840(RGB)×2160, UHD, 68PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | No |
| Interface | V-by-One |
| Panel Brand | SAMSUNG |
| Panel Model | LSC650FF02-G |
| Panel Size | 65" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1428.48(W)×803.52(H) mm |
| Bezel Opening | - |
| Outline Size | 1438.48(W)×814.52(H) ×1.3(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | SVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 6 (Typ.)(G to G) |
| Glass Depth | - |
| Transmissivity | 5.1% (Typ.)(with Polarizer) |
| Display Colors | 1.07B 68% NTSC |
| Lamp Type | No B/L |
| Frequency | 120Hz |
| Touch Screen | Without |
| Panel Weight | 3.20Kgs (Typ.) |
| Signal Interface | V-by-One 16 lane , 92 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
