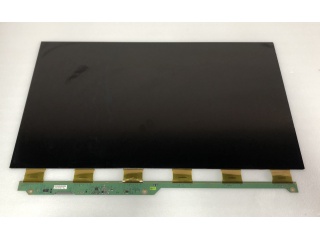

| PartNumber | LSM270HP05-G01 |
| Brand | SAMSUNG |
| Size | 27.0 |
| Application | Desktop Monitor |
| Resolution | 1920(RGB)×1080, FHD, 81PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 3000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LSM270HP05-G01 |
| Panel Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 597.888(W)×336.312(H) mm |
| Bezel Opening | - |
| Outline Size | 608.288(W)×348.037(H) ×1.16(D) mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | SPVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 21 (Typ.)(G to G) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 4.25% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COFBuilt-in 6 source chips |
| Panel Weight | 560g (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
