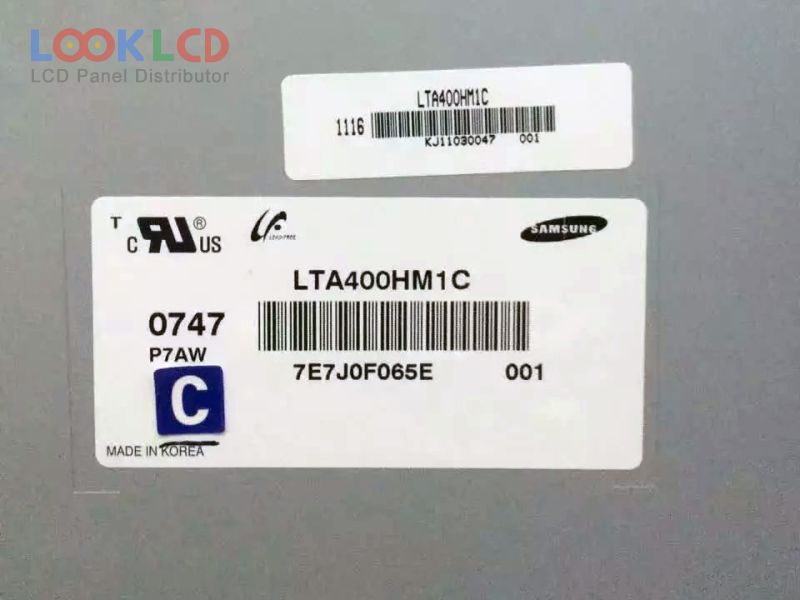

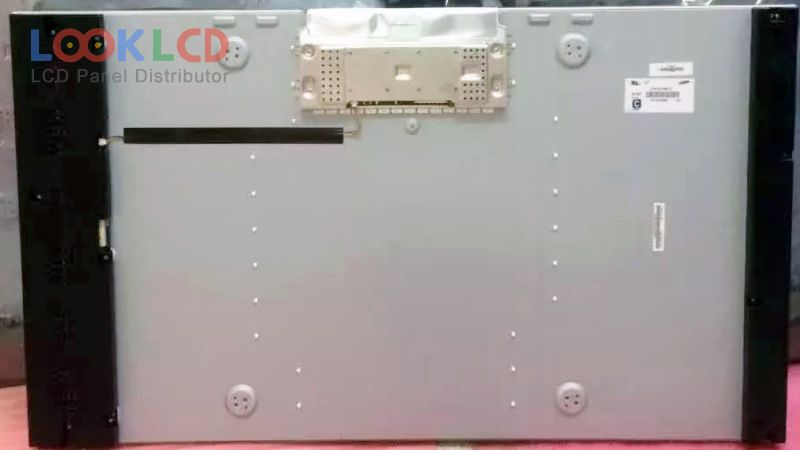

| PartNumber | LTA400HM1C-001 |
| Brand | Samsung |
| Size | 40 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 2000:1 |
| Colors | 1.07B |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA400HM1C-001 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 40 inch |
| Display Mode | S-PVA, Normally Black, Transmissive |
| Active Area | 885.6×498.15 mm |
| Outline | 911.7×524.2 mm |
| Surface | Antiglare (Haze 5%), Hard coating (3H) |
| Contrast Ratio | 2000:1 (Typ.) |
| Display Colors | 1.07B (10-bit), CIE193190% |
| Response Time | 6 (Typ.)(G to G)); 8 (Typ.)(MPRT) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 22 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 10-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
| LTA400HF23 | Samsung | 40 | 1920×1080 |
| LTA400HH-L02 | Samsung | 40 | 1920×1080 |
| LTA400HL10 | Samsung | 40 | 1920×1080 |
| LTA400HM09 | Samsung | 40 | 1920×1080 |
| LTA400HM17-W | Samsung | 40 | 1920×1080 |
| LTA400HM1C-001 | Samsung | 40 | 1920×1080 |
| LTA400HM22 | Samsung | 40 | 1920×1080 |
| LTA400HT-L07 | Samsung | 40 | 1920×1080 |
| LTA400HT-LH2 | Samsung | 40 | 1920×1080 |
| LTA400HV01 | Samsung | 40 | 1920×1080 |
| LK400D3LB83 | SHARP | 40 | 1920×1080 |
| LTA260W2-L12 | Samsung | 26.0 | 1366×768 |
| LTA320HM01 | Samsung | 31.5 | 1920×1080 |
| LTA400WT-L09 | Samsung | 40 | 1366×768 |
| LTA460HQ18 | Samsung | 46 | 1920×1080 |
| LTF320HM01 | Samsung | 31.5 | 1920×1080 |
| LTF550HJ03 | Samsung | 55 | 1920×1080 |
| T460HVN08.2 CELL | AUO | 46 | 1920×1080 |
| V400DK1-KE7 | Innolux | 40 | 3840×2160 |
| V400HJ6-PE1 | Innolux | 40 | 1920×1080 |
