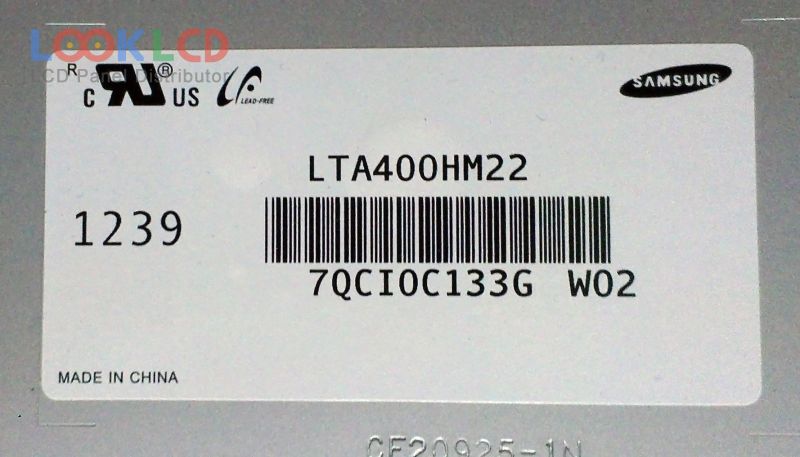

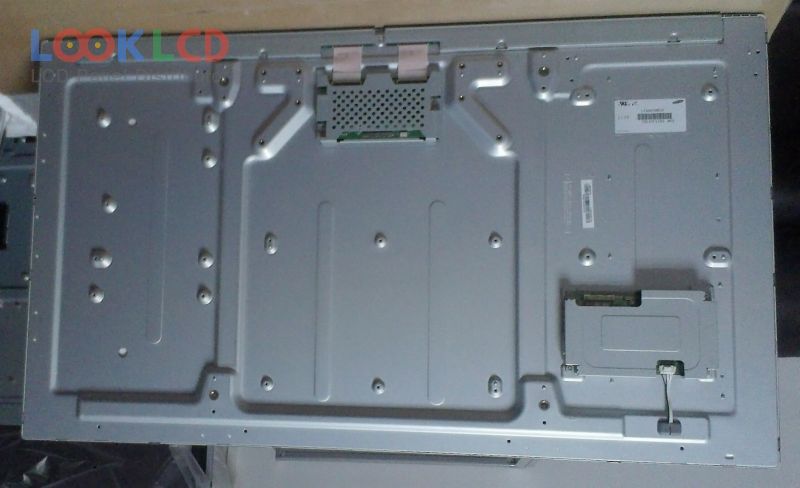

| PartNumber | LTA400HM22 |
| Brand | Samsung |
| Size | 40 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA400HM22 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 40 inch |
| Display Mode | S-PVA, Normally Black, Transmissive |
| Active Area | 885.6×498.15 mm |
| Outline | 912.4×527.6 mm |
| Surface | Antiglare (Haze 2%) |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 1.07B (10-bit), CIE193170% |
| Response Time | 10 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 10-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
