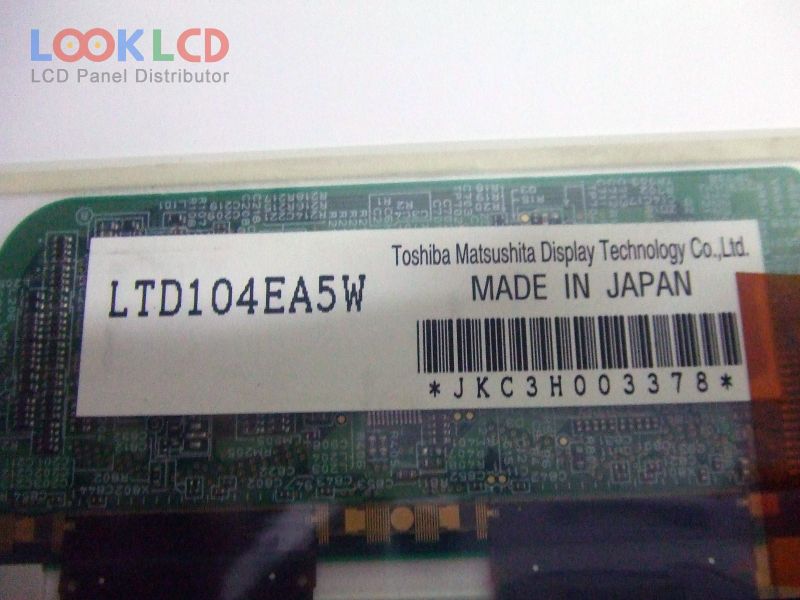

| PartNumber | LTD104EA5W |
| Brand | TOSHIBA |
| Size | 10.4 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 180 cd/m² (Typ.) |
| CR | 100:1 |
| Colors | 262K |

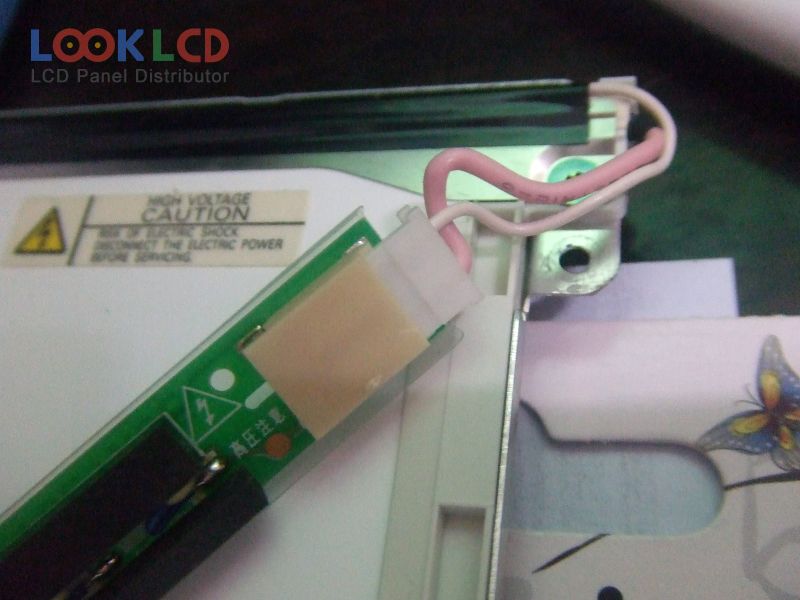

| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | Toshiba Matsushita |
| Panel Model | LTD104EA5W |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 210.4×157.8 mm |
| Outline | 237.7×173.2×4.9 mm |
| Surface | |
| Contrast Ratio | 100:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |

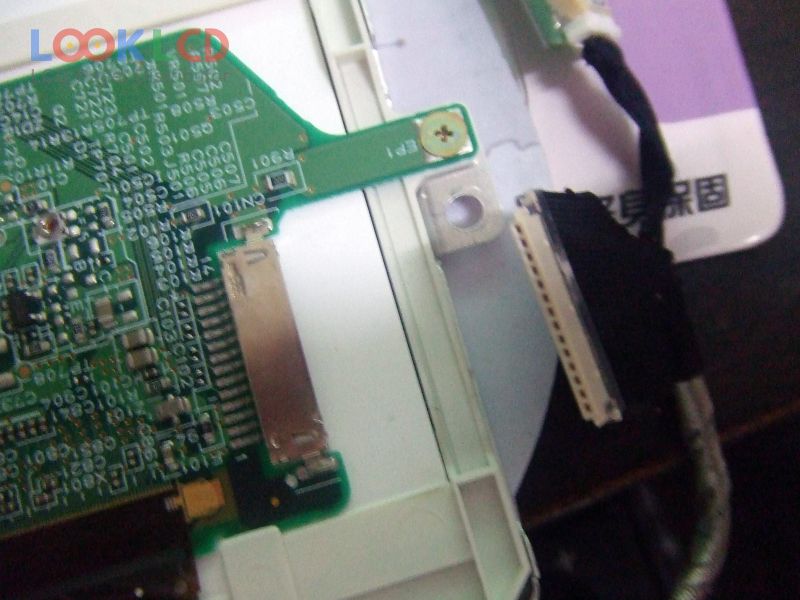

| Signal Interface | LVDS (1 ch, 6-bit), 14 pins |
| Input Voltage | 3.3V (Typ.) |
