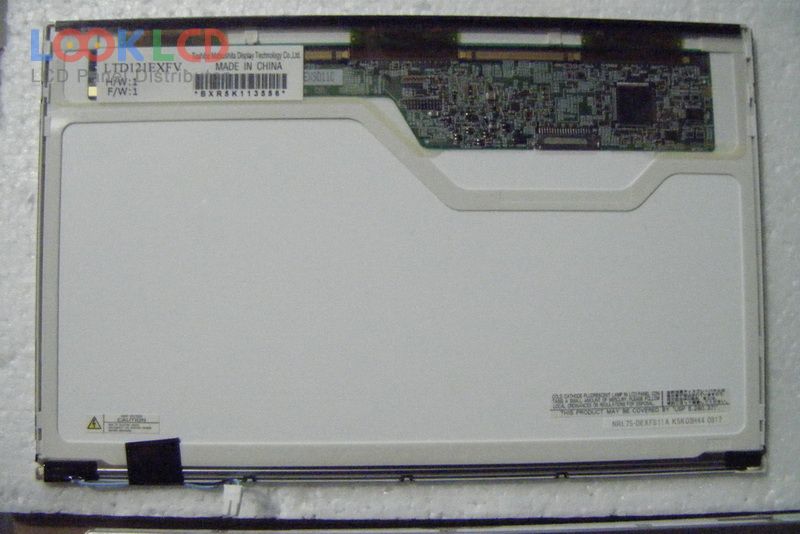

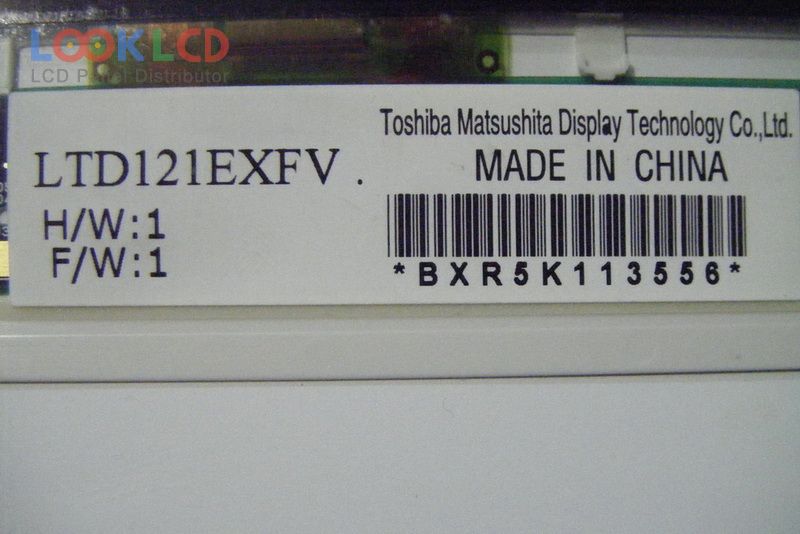

| PartNumber | LTD121EXFV |
| Brand | TOSHIBA |
| Size | 12.1 |
| Application | NBPC |
| Resolution | 1280(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | Toshiba Matsushita |
| Panel Model | LTD121EXFV 1 Compatible model |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 263.04×157.824 mm |
| Outline | 275×173.5×5.2 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 50 (Max.)(Tr+Td) |
| Viewing Angle | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| RoHS: |
