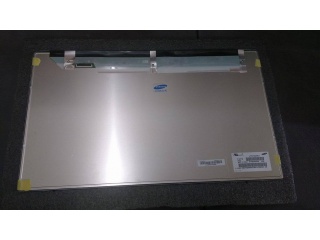

| PartNumber | LTF230AN01 |
| Brand | SAMSUNG |
| Size | 23.0 |
| Application | TV Sets |
| Resolution | 1366×768 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 4000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | LTF230AN01 |
| Diagonal Size | 23.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 68PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 508.152(H)×285.696(V) mm |
| Outline Dim. | - |
| Luminance | - |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | PVA, Normally Black, Transmissive |
| Support Color | 16.7M 68% NTSC |
| Light Source | WLED |
| Weight | - |
| Designed For | TV Sets |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
