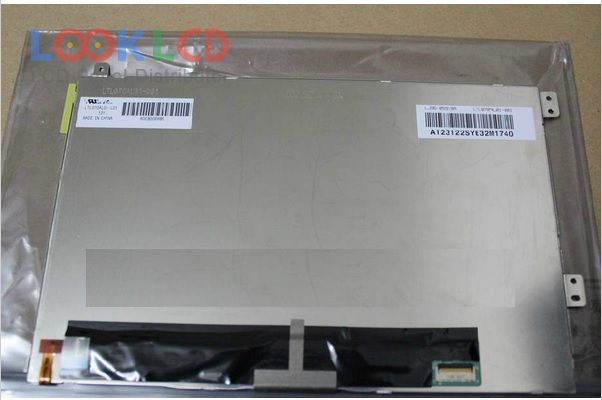

| PartNumber | LTL070AL01-L01 |
| Brand | Samsung |
| Size | 7.0 |
| Application | UMPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTL070AL01-L01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | PLS, Normally Black, Transmissive |
| Active Area | 150.72×94.2 mm |
| Outline | 164.2×106.75×4.42 mm |
| Surface | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S4PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 31 pins |
| Input Voltage | 3.3V (Typ.) |
