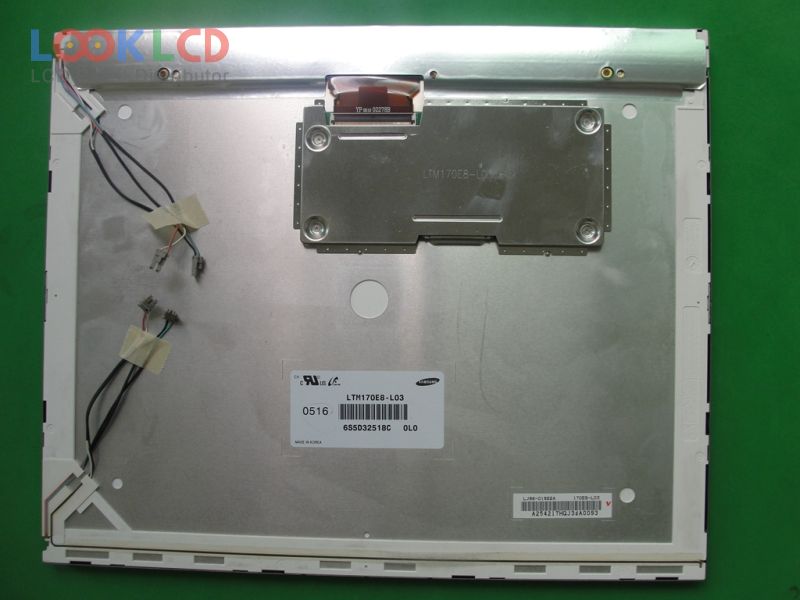

| PartNumber | LTM170E8-L03 |
| Brand | Samsung |
| Size | 17.0 |
| Application | DMPC |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 280 cd/m² (Typ.) |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTM170E8-L03 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | PVA, Normally Black, Transmissive |
| Active Area | 337.92×270.336 mm |
| Outline | 354.9×290.3×16.5 mm |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Contrast Ratio | 1500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 14 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
