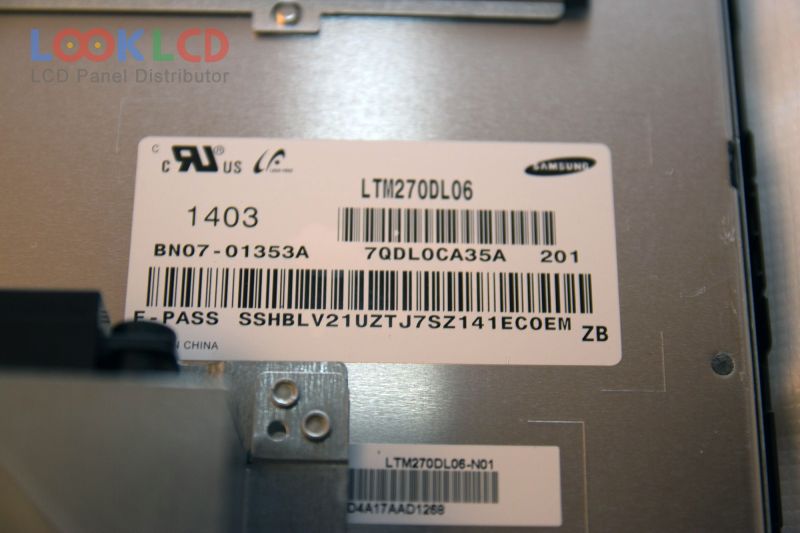

| PartNumber | LTM270DL06 |
| Brand | Samsung |
| Size | 27.0 |
| Application | DMPC |
| Resolution | 2560(RGB)×1440 , Quad-HD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTM270DL06 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 27.0 inch |
| Display Mode | PLS, Normally Black, Transmissive |
| Active Area | 596.736×335.664 mm |
| Outline | 630×368.2×16.1 mm |
| Surface | Antiglare (Haze 35%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), sRGB |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 16S4PWLEDWithout Driver |
| Signal Interface | LVDS (4 ch, 8-bit), 61 pins |
| Input Voltage | 5.0V (Typ.) |
