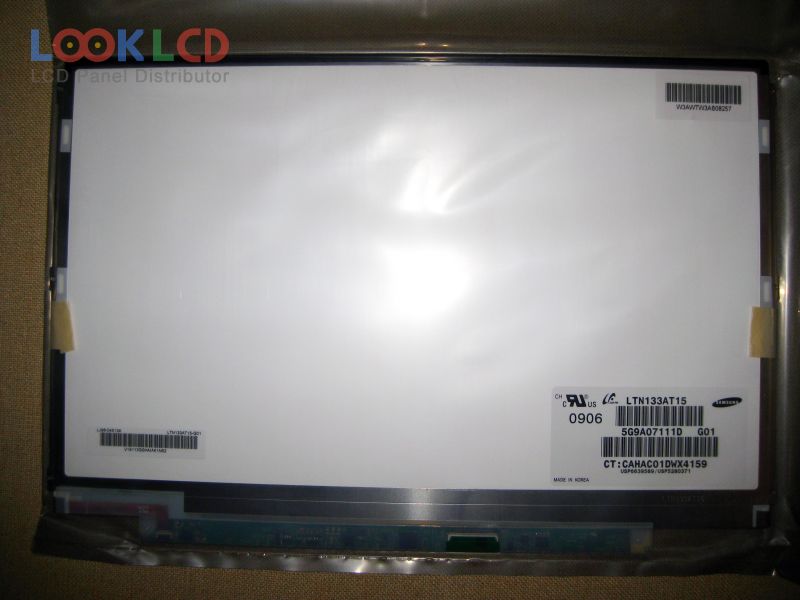

| PartNumber | LTN133AT15-G01 |
| Brand | Samsung |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN133AT15-G01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 286.08×178.8 mm |
| Outline | 296×203×3.5 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT05-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| LTN133AT14-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT16-L01 | Samsung | 13.3 | 1280×800 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| LTN133AT17-104 | Samsung | 13.3 | 1366×768 |
| LTN133AT23-803 | Samsung | 13.3 | 1366×768 |
| LTN133AT23-C01 | Samsung | 13.3 | 1366×768 |
| LTN133AT25-T01 | Samsung | 13.3 | 1366×768 |
| B140XW01 V9 | AUO | 14.0 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LQ164M1LA4A | SHARP | 16.4 | 1920×1080 |
| LTD121EXFV | TOSHIBA | 12.1 | 1280×768 |
| LTM14C421F | TOSHIBA | 14.1 | 1024×768 |
| LTN154X3-L02 | Samsung | 15.4 | 1280×800 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
