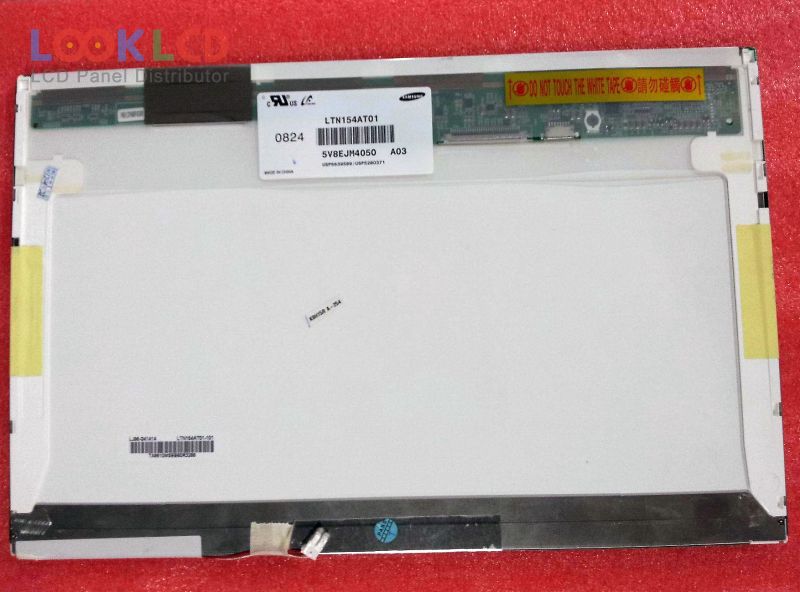

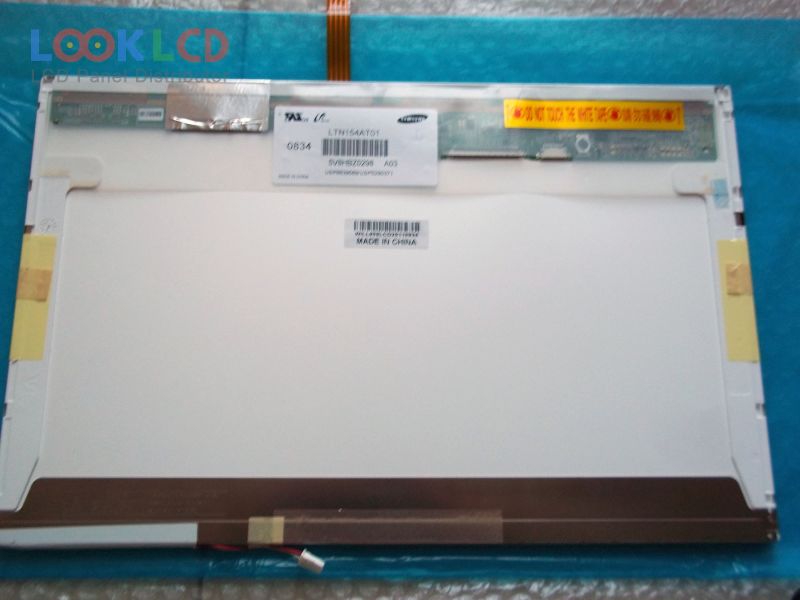

| PartNumber | LTN154AT01-A03 |
| Brand | Samsung |
| Size | 15.4 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN154AT01-A03 20 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 331.2×207 mm |
| Outline | 344×222×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B133XW03 V3 | AUO | 13.3 | 1366×768 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN133AT01-003 | Samsung | 13.3 | 1280×800 |
| LTN160AT01-F02 | Samsung | 16.0 | 1366×768 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
