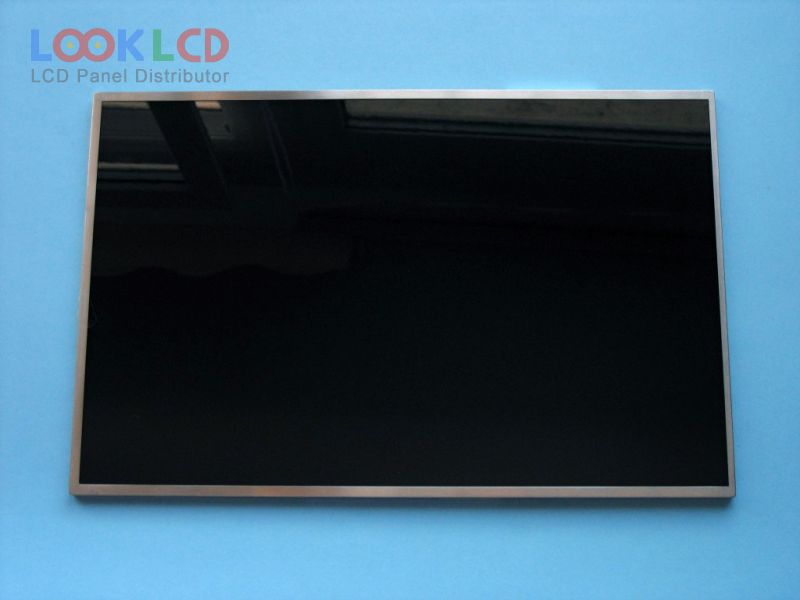

| PartNumber | LTN154AT12-D01 |
| Brand | Samsung |
| Size | 15.4 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN154AT12-D01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 331.2×207 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | |
| Contrast Ratio | |
| Display Colors | 262K (6-bit) |
| Response Time | |
| Viewing Angle | |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | LVDS (1 ch, 6-bit) |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| HT14X12-101 | HYDIS | 14.1 | 1024×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP154WE3-TLB1 | LG Display | 15.4 | 1680×1050 |
| LP156WF4-SPU1 | LG Display | 15.6 | 1920×1080 |
| LT121SU-125 | Samsung | 12.1 | 800×600 |
| LTN160AT02-002 | Samsung | 16.0 | 1366×768 |
| LTN170X2-L02 | Samsung | 17.0 | 1440×900 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
